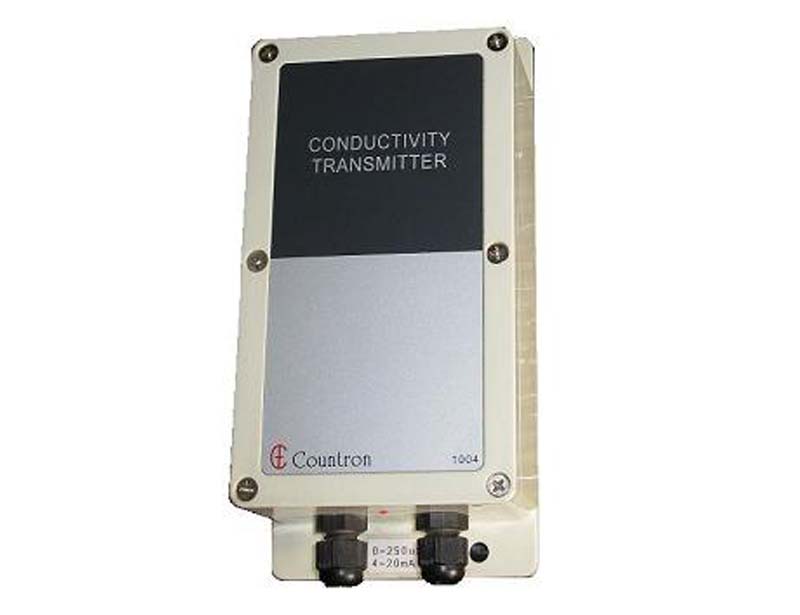

Category:  Conductivity Meter Indicator Controller

SKU:  1004


Features
  • Precision indication of conductivity in 4-20mA output
  • Automatic Temperature Compensation @2%/˚C using PT-100
  • Range can be provided from 19.99 µs to 199.9mS (Factory Set)
  • Aesthetically designed weather-proof cabine
Specification
Range 19.99ms 199.9ms
(Factory Set) 1999 µs 19.99ms
199.9µs 1999 µs
19.99µs 199.9µs
(0.1Cell) (1.0 Cell)
Accuracy ± 0.5% of F.S. ± 1 LSD
Sensor ‘Contact type’ with Cell constant 0.1 or 1.0.
Temp. Uses PT-100, precision temperature Comp.
sensor (external). The compensation is
internally set at 2%/˚C
Supply 220V AC ± 15% @ 50Hz/60Hz
Size 198mm x 89mm x 60mm (LxWxH) – with flange
