Category:  Peak Load Indicators/Loggers

SKU:  CT901


Features
  • Range for load indication corresponding to 4-20mA input digitally settable from front panel
  • Peak/Normal mode selectable
  • Up to 9 peaks can be recorded and recalled
  • Buzzer annunciation at Peak
  • Relay output for load limit detection with limit digitally settable
  • Digital tare provided to remove initial error
  • Non-volatile memory for saving configuration
  • Configuration lock at rear to prevent tampering with Range

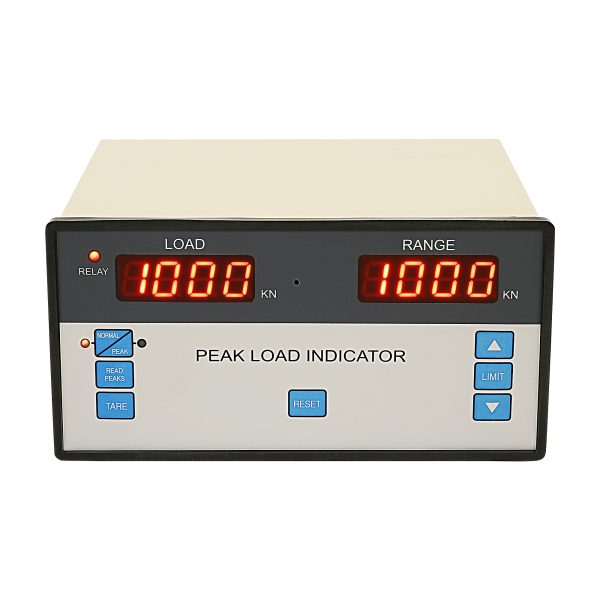

  • Aesthetically designed front panel with membrane switches
Specification
Display 4 Digit 0.56” 7 segment Red LED display for Load (KN)
4 Digit 0.56” 7 segment Red LED display for Set Point (KN)
Range 1KN to 9999
Accuracy ±0.1% of Full Scale ± 1 digit
Input From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 – Range
Relay Logic When Actual Load ≥ Set Load Limit relay switches On.
Normal/Peak Mode Selectable from front panel with LED indication of mode
Peak Read Last 9 peaks can be recalled with facility to reset memory
Peak Detection Peak hold is resettable from front Reset Switch or by a parallel rear external contact
Table Digital Tare using front panel Tare switch up to a maximum of 50KN (for removing initial offset error)
Memory Non-volatile EEPROM to save settings

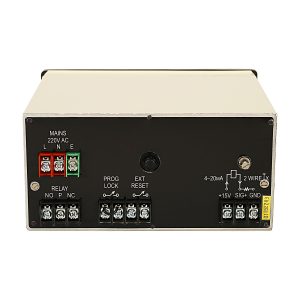

Table On rear terminals to prevent unauthorized /accidental alteration of Range using front switches
Supply 220V AC ± 15% @ 50/60Hz

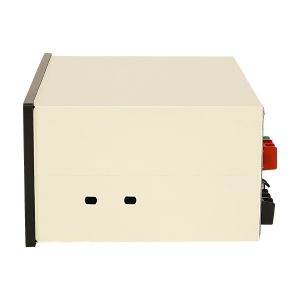

Dimensions Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm
