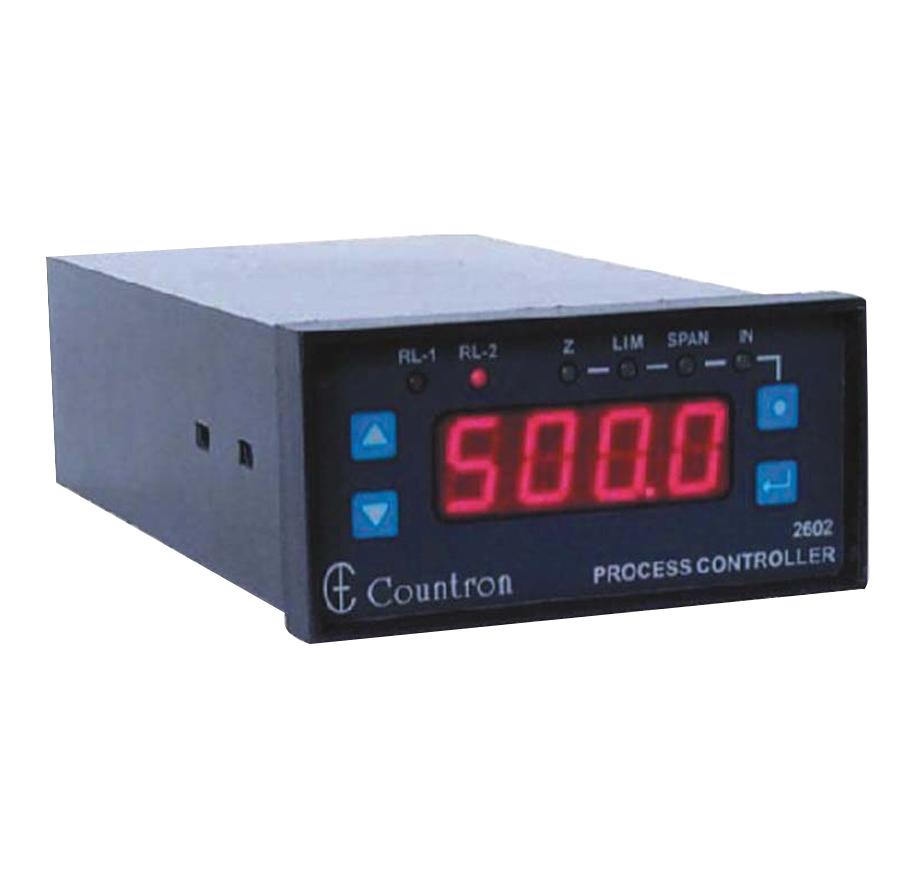

Category:  Process Indicator/Controller

SKU:  2602


Features
  • Microprocessor based precision controller
  • Linearised for 7 types of common thermocouples & PT100 Temperature sensor with Auto cold junction compensation
  • Input for 4-20mA / 0-20mA / 1-5V / 0-5V from Tx for Pressure, Humidity, pH, Temperature etc.
  • Display user programmable from 0 to 9999
  • 4 Digit 0.56” Bright 7 Segment LEDs
  • Decimal user settable
  • Separate heater & cooler logic relays
  • Hysterisis of relay control settable
  • Offset separately programmed from front
  • Configuration lockable by rear jumper
  • Excitation voltage for loop Tx. Sourced
  • Touch type membrane control keys
Specification
Display 4 Digit 0.56” Red 7 Segment LED display
Inputs Linear (Universal from Tx)
0-20mA, 4-20mA, 0-5V & 1-5V
Non-linear (temperature sensors)
T/C – B,E,R,S,T,J,K and 3 Wire PT100
Accuracy ±0.25% of SPAN ± 1 Count
Resolution 0.001 to 9999 for linear inputs
1.0 or 0.1 for Temperature Display
Control 2 Set of Control Limits
Set-1 heater logic & Set-2 cooler logic
5 Amps/220V AC Relay Contact output
Hysterisis settable
Calibration By software. Ambient by rear Pot
Configuration Lock Jumper at rear
Exciter Voltage 24V @ 30mA for loop Tx
Power 220V AC ± 15% @ 50/60 Hz
Ambient 0-55˚C
Humidity Up to 90% (non-condensing)
Power Consumption 10VA
Case 48 x 96 x 180 mm Plastic ABS
Front Fascia 48 x 96 mm
Panel Cutout 45 x 92 mm
