pH/ORP

Countronics pH and ORP instruments cover online controllers with two set limits and 4–20 mA output, panel and wall-mounted indicators, isolated transmitters and bench-top meters for labs. They are used in ETPs and STPs, water treatment and RO plants, electroplating, swimming pools, dairies, breweries and chemical dosing. Controllers drive acid/alkali or oxidiser/reducer dosing pumps directly from their relays.

Showing 1–9 of 10 results

Compare Models: pH & ORP Indicators and Controllers

ModelTypeFunctionOutput

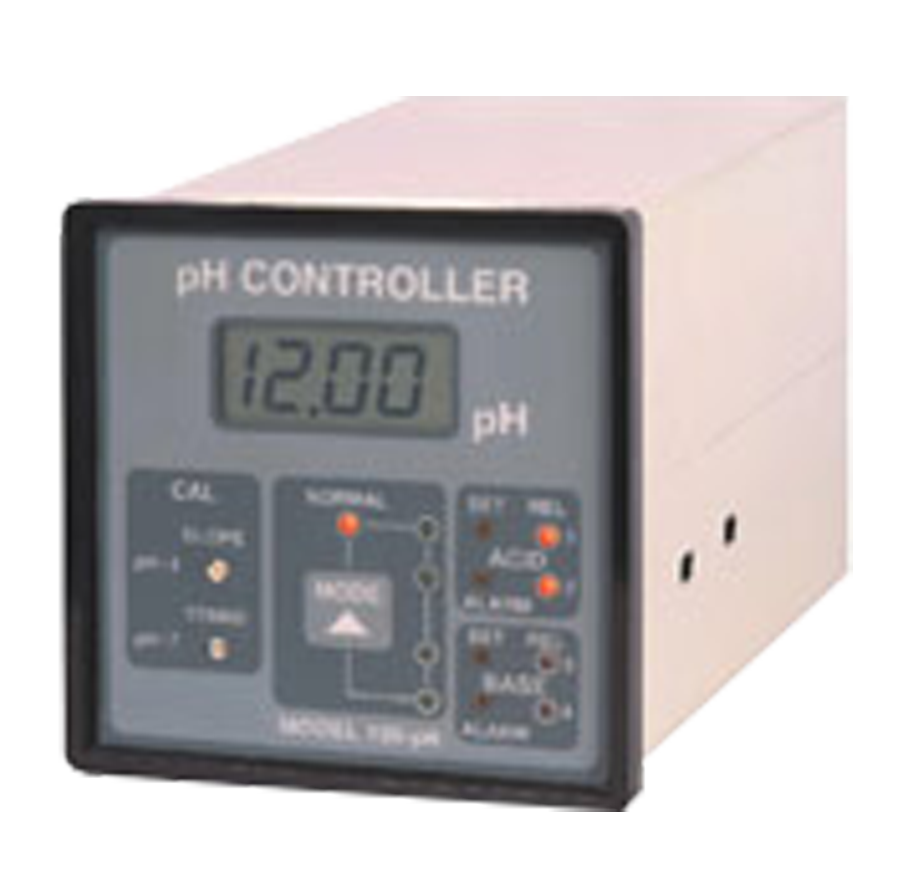

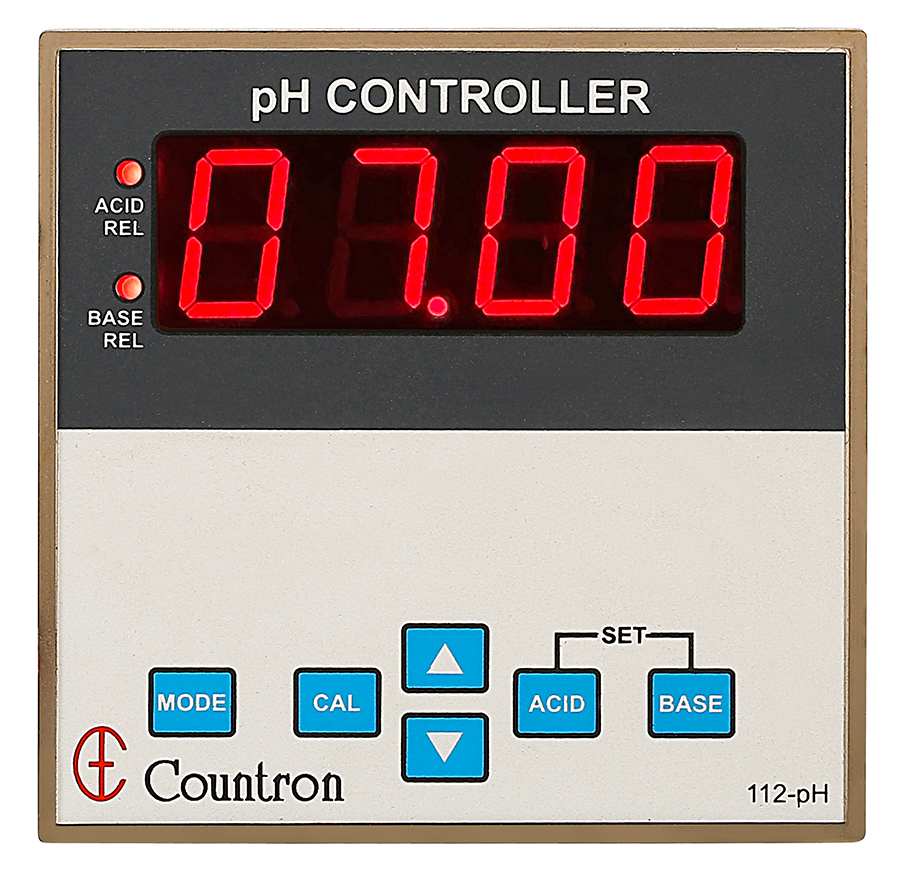

112pHOnline pH controller2 set limits, relays4–20 mA
110phOnline pH controller2 set limits—

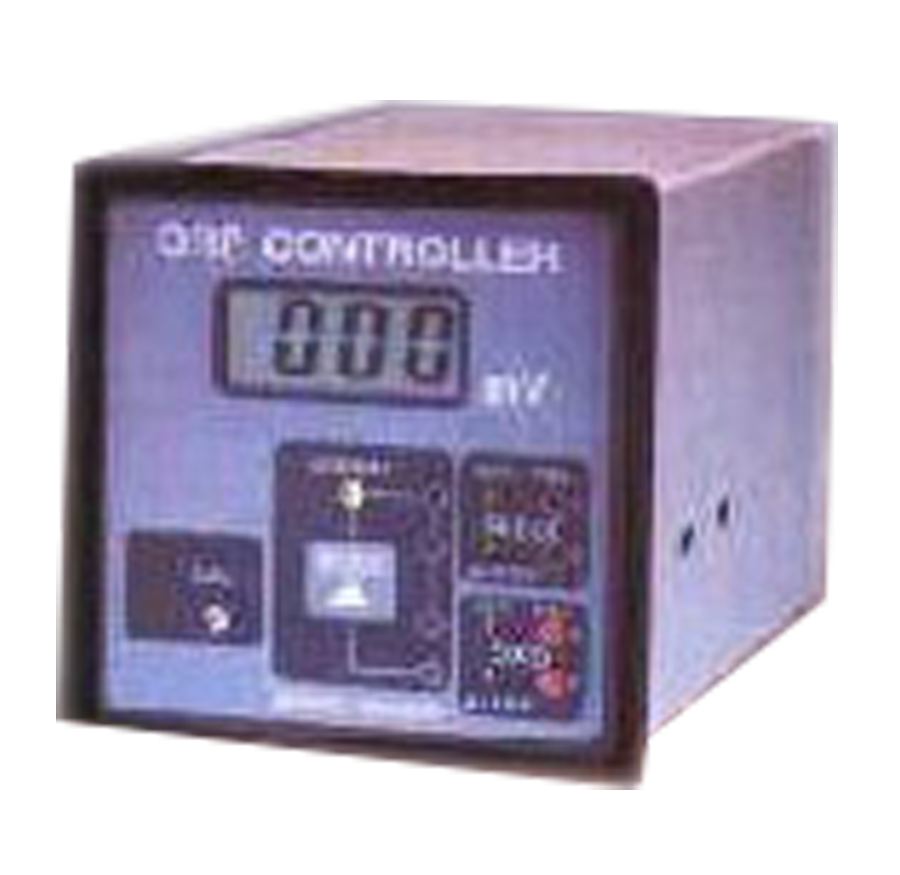

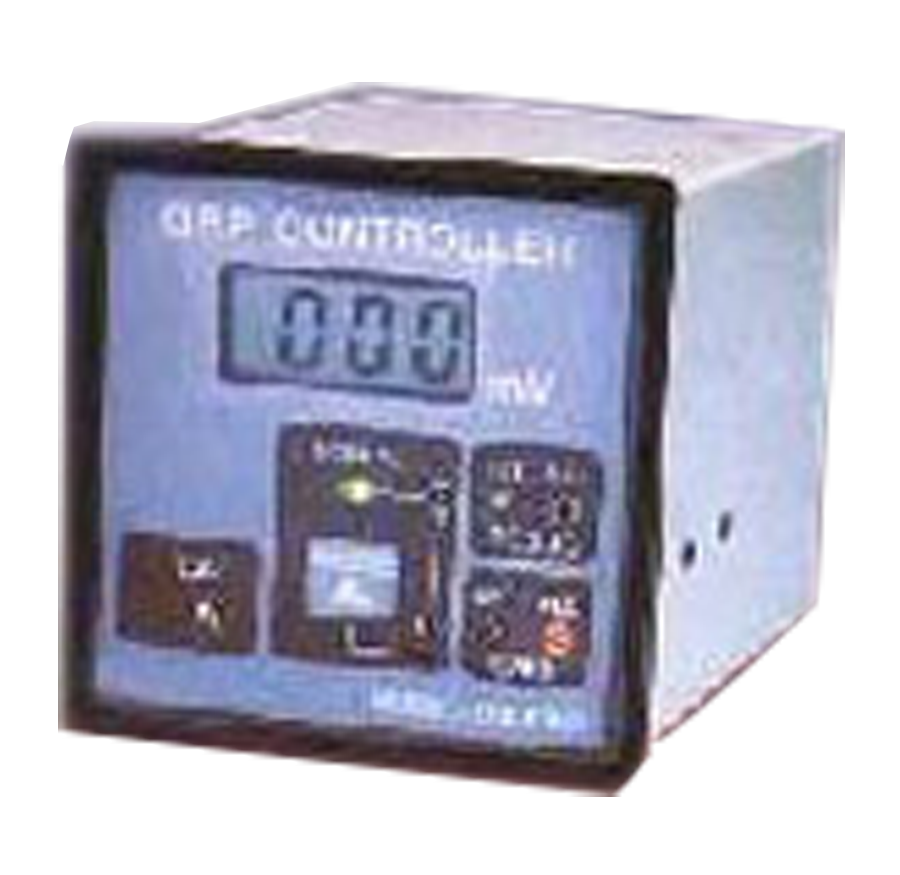

110-ORPOnline ORP controller2 set limitsIsolated 4–20 mA
7215-01Wall pH + ORP controllerControl output—

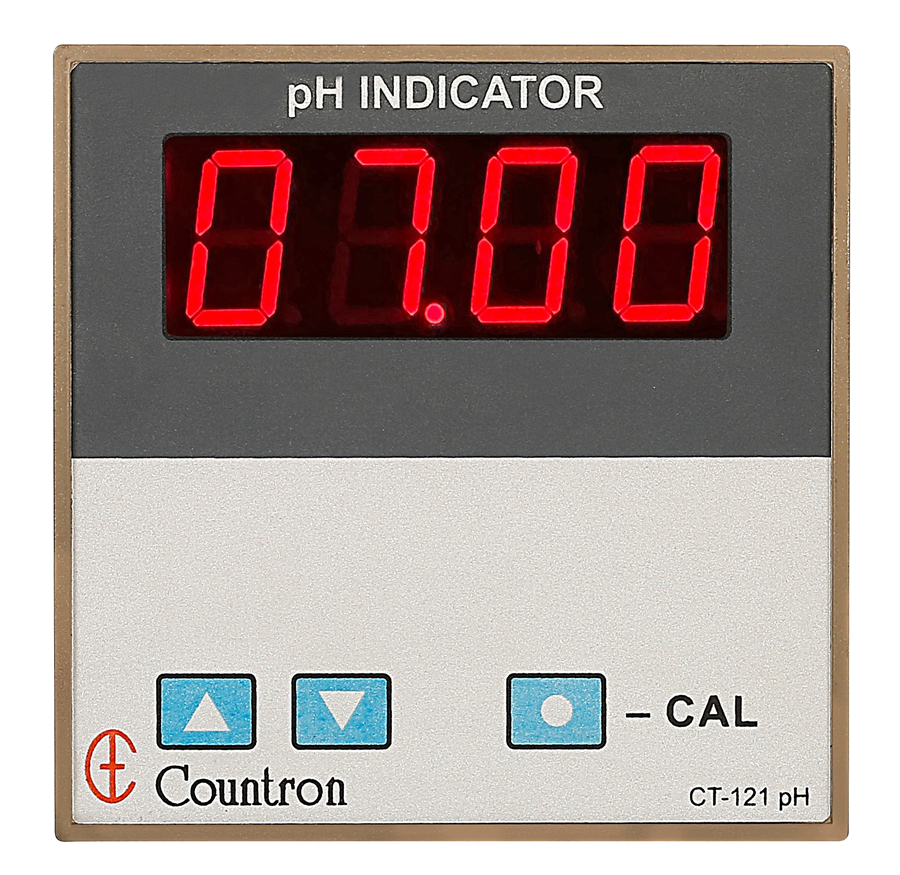

121pHOnline pH indicatorDisplay—

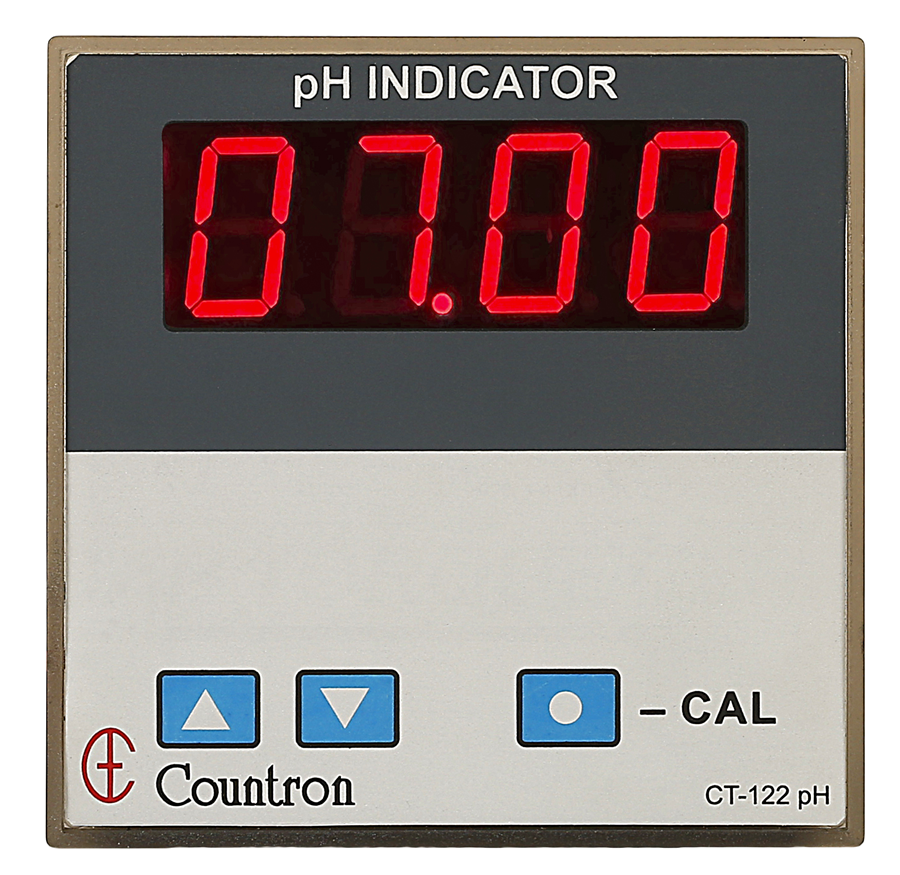

122pHOnline pH indicatorDisplayIsolated 4–20 mA
120pHPanel pH indicator, LEDDisplay—
7100-01Wall pH indicatorDisplay4–20 mA

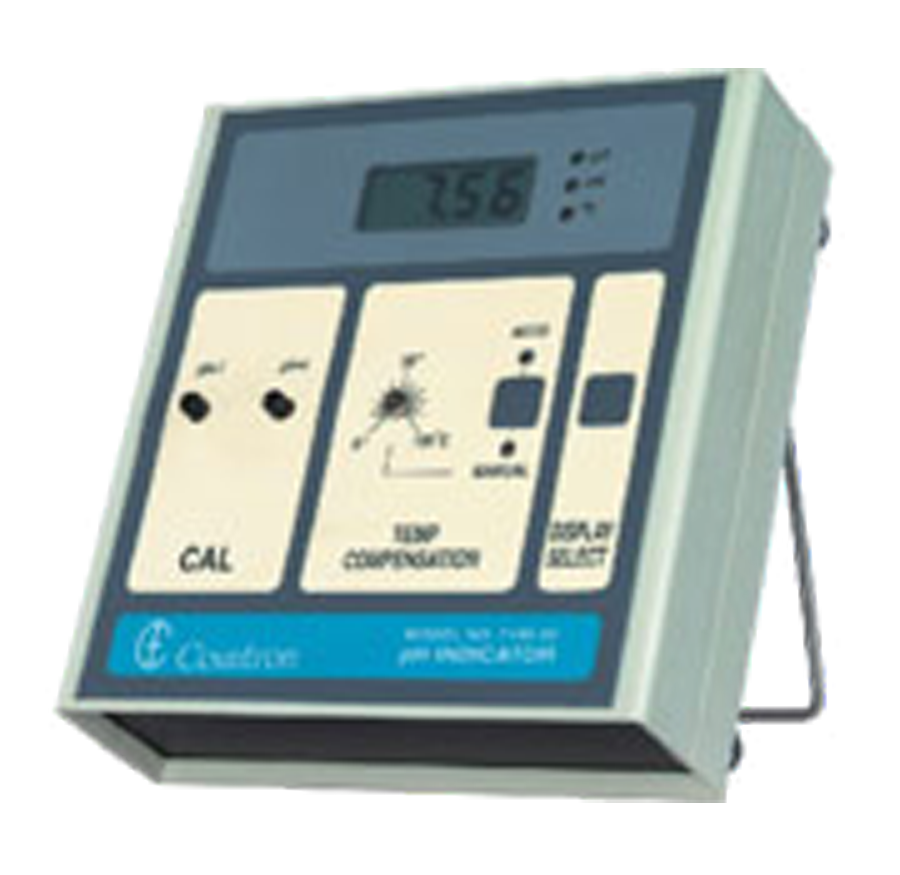

7100-02Lab pH/mV/temp meterBench top—

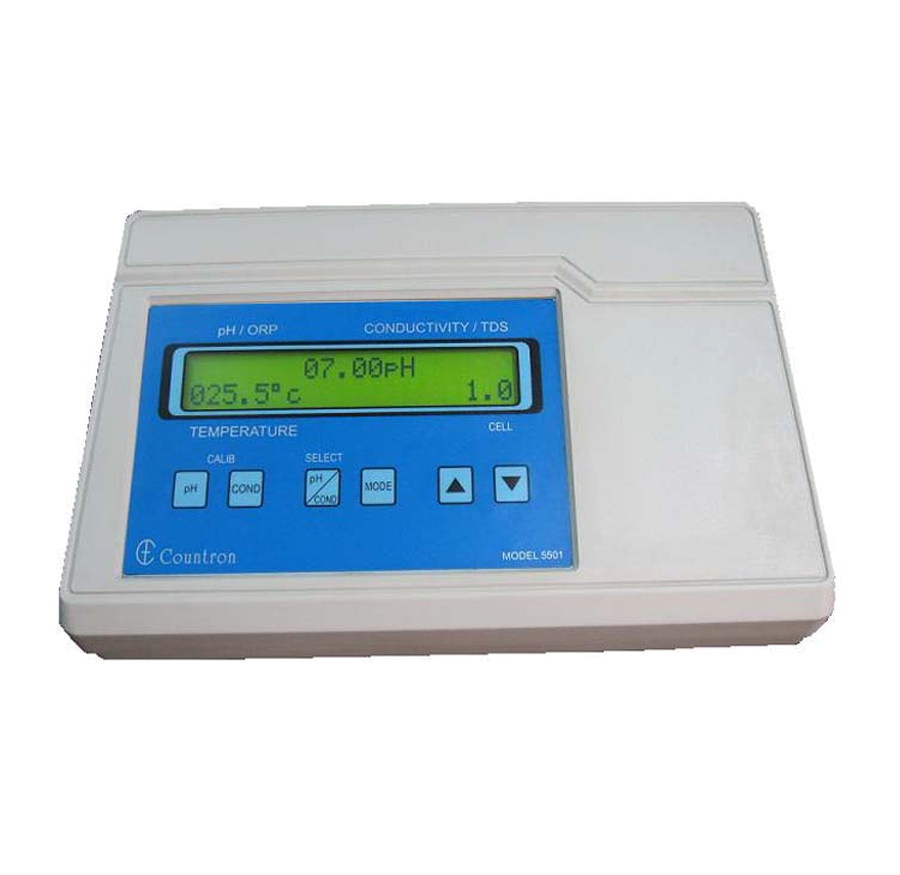

5501Bench multi-parameterpH/ORP/cond/TDS/temp—

Selection Tips

  • Dosing a chemical? Controller with relays (112pH, 110ph, 110-ORP).
  • Sending the reading to a PLC/SCADA? Choose an isolated 4–20 mA output (112pH, 122pH, 110-ORP).
  • Monitoring only? Indicator (121pH, 120pH, 7100-01).
  • Lab checks? Bench meters 7100-02 or 5501.

Frequently Asked Questions

What is the difference between a pH indicator and a pH controller?

An indicator only displays pH; a controller also switches relays at set points to run dosing pumps or alarms.

Why is an isolated 4–20 mA output important?

It prevents ground loops between the pH electrode circuit and the PLC, which cause unstable readings.

Can one instrument measure pH and ORP?

Yes — the 7215-01 handles pH and ORP, and the 5501 bench meter measures pH, ORP, conductivity, TDS and temperature.

Do you supply pH electrodes?

Yes, suitable electrodes are supplied with the instruments; tell us your application.

How often should the electrode be calibrated?

Typically weekly to monthly with pH 7 and pH 4 (or 10) buffers, depending on the process.

Related Guides

Need help choosing? WhatsApp +91 98183 50088 or send an enquiry with your application and we will recommend a model. 110 V AC / 60 Hz, 12 V DC and 24 V DC versions available on request; supplied worldwide.
