Features
  • MODBUS-RTU output of all channels
  • Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors
  • 4-20mA input with Low, High and resolution individually settable for each channel
  • Independent High and Low Set Limits for each channel with independent LED indications for each channel
  • Common High and Low Relays for alarm
  • Auto cold junction compensation for thermocouples and 3 wire input for PT100
  • Number of usable channels selectable
  • Settable Modbus ID
  • Auto/Manual mode of scanning selectable
  • Digital offset user settable for individual channels
Specification
Display 0.56” Red LED display for Channel Number
0.36” Green LED display for Process Value
Sensor J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable
Ranges Available J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C
4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1
Resolution 1˚C for thermocouples, 0.1˚C for PT100 and user selectable for 4-20mA
Channels Maximum 8
Scanning Rate User settable from 1-99seconds (for auto mode)
Digital Offset User settable individually for each channel
Logging Rate 1 second to 99Mins59seconds
Data Logging MODBUS-RTU for accessing data of all channels
MODBUS ID 1-99, user settable
Accuracy ±1˚C ± 1 Least Significant Digit for Thermocouples
±0.1˚C ± 1 Least Significant Digit for PT100
High Alarm Relay If any of the High Alarm LEDs are on (when any Channel Value is greater than its
corresponding High Set limit, High Alarm relay will come on.
Low Alarm Relay If any of the Low Alarm LEDs are on (when any Channel Value is lesser than its
corresponding Low Set limit, Low Alarm relay will come on
Power Supply 230V AC ± 15% at 50/60Hz

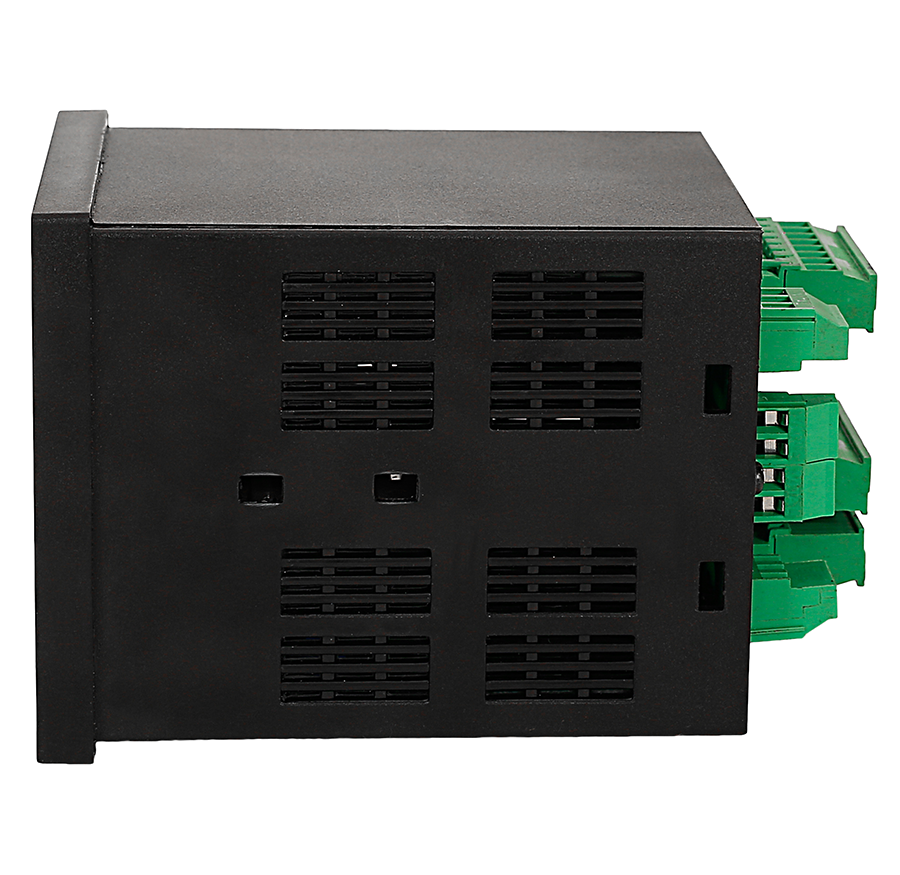

Mounting Type Panel Type
Front Facial 96mm x 96mm
