Category: Digital Temperature Controller, Digital Temperature Indicator, Controller, Logger, Humidity Indicators, Humidity Logger, Humidity Meter, Indicator, Controller
SKU: 7214
Features
- Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
- 4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.
- Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power
- On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis
- Digital Offset control for Temperature and Humidity
- Capacitive sensor for 0-100% Humidity and -20˚C to +80˚C
- Non-Volatile memory to hold settings and counts
Specification
| Display | 4 Digit, 7 segment Green LED display (0.56” height) for Humidity 4 Digit, 7 segment Red LED display (0.56” height) for Temperature |
| Range | 0-100.0% for Humidity (in 5˚C to 50˚C temperature range) -20.0˚C to +80.0˚C for Temperature |
| Set Limits | 0-100.0% for Humidifier 0-100.0% for De-Humidifier -40.0˚C to +100.0˚C for Heater -40.0˚C to +100.0˚C for Cooler |
| Percentage Power | 0-200% for Set Limits of Humidifier and Heater. |
| Hysterisis | 0-9.9 for De-Humidifier and Cooler |
| Digital Offsets | -19.9 to +19.9 for Humidity -19.9 to +19.9 for Temperature |
| Sensor Supply | 5V DC |
| SSR Outputs | +12VDC outputs Heater, Cooler, Humidifier and De-Humidifier |
| Memory Retention | 10 years |
| Mounting | Panel Mounting |

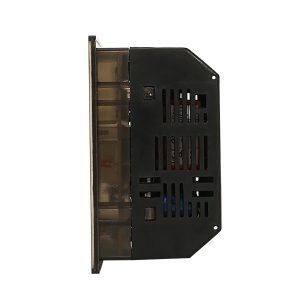

| Size | 96mm x 96mm. Depth 50mm |
| Weight | Approx. 375 grams |
| Operating Temp. | 0-50˚C |
| Humidity | 95% RH |
For More Information View Catalogue.
