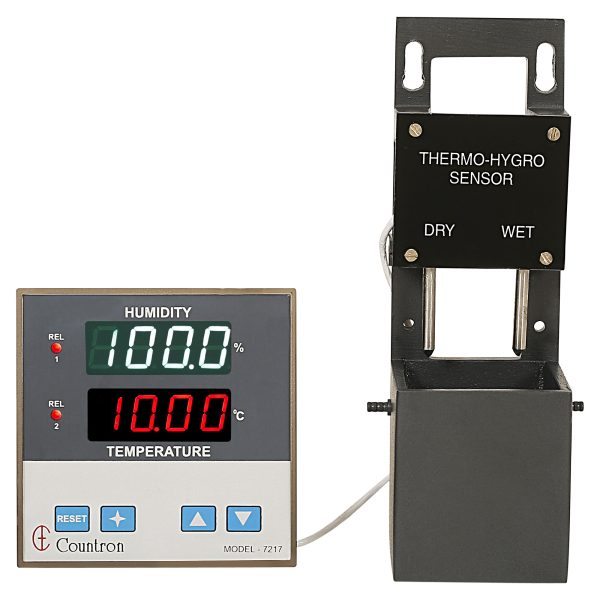

Features
  • Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
  • Separate Limits and Relays for Temperature and Humidity with selection between Heater/Cooler and Humidifier/De-Humidifier
  • On/Off type outputs with user settable Hysterisis
  • Digital Offset control for Temperature and Humidity
  • Capacitive sensor offering ease of use
  • Non-Volatile memory to hold settings and counts
Specification
Display 4 Digit, 7 segment Green LED display (0.56” height) for Humidity
4 Digit, 7 segment Red LED display (0.56” height) for Temperature
Range 0-100.0% for Humidity (in 5˚C to 50˚C temperature range)
0˚C to +80.0˚C for Temperature
Set Limits 0-100.0% for Humidity Set Limit
0.0˚C to +100.0˚C for Temperature Set Limit
Hysterisis 0-9.9 for Humidity and Temperature
Digital Offsets -19.9 to +19.9 for Humidity
-19.9 to +19.9 for Temperature
Relay Outputs Potential Free contacts @220V/5Amps, one each for Temperature and Humidity
Memory Retention 10 years
Mounting Panel Mounting
Size 96mm x 96mm. Depth 50mm
Weight Approx. 375 grams
Operating Temp. 0-50˚C
Humidity 95% RH

For More Information View Catalogue.
