Category: Process Controller and Indicator
SKU: SV8

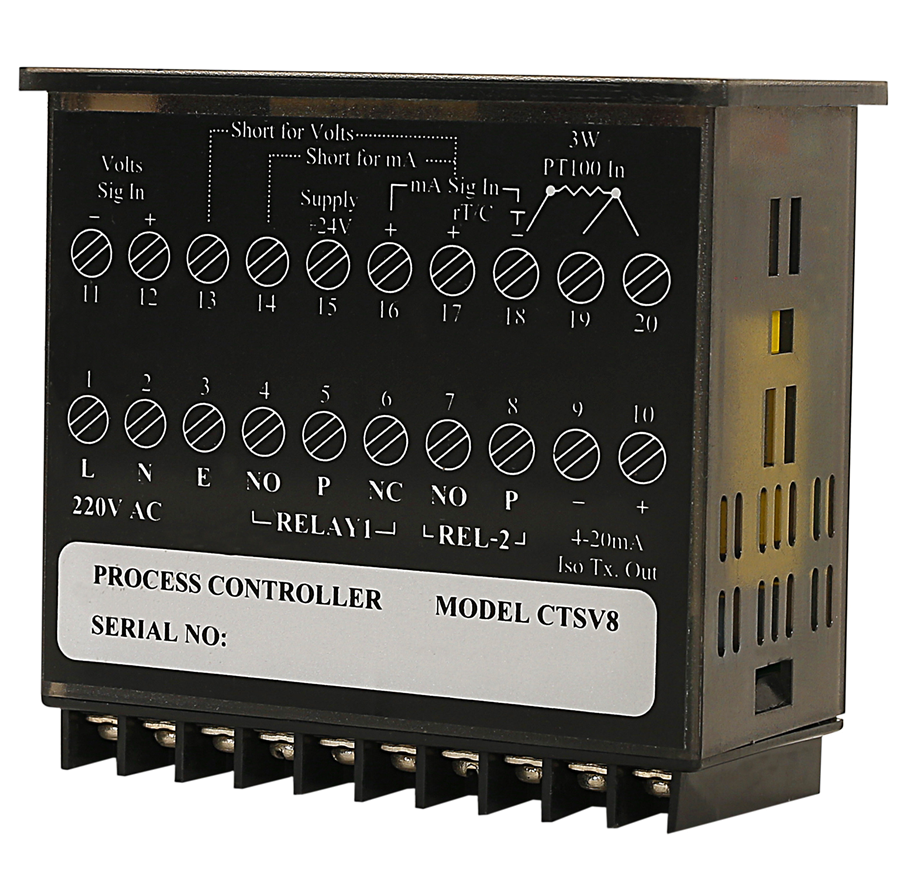

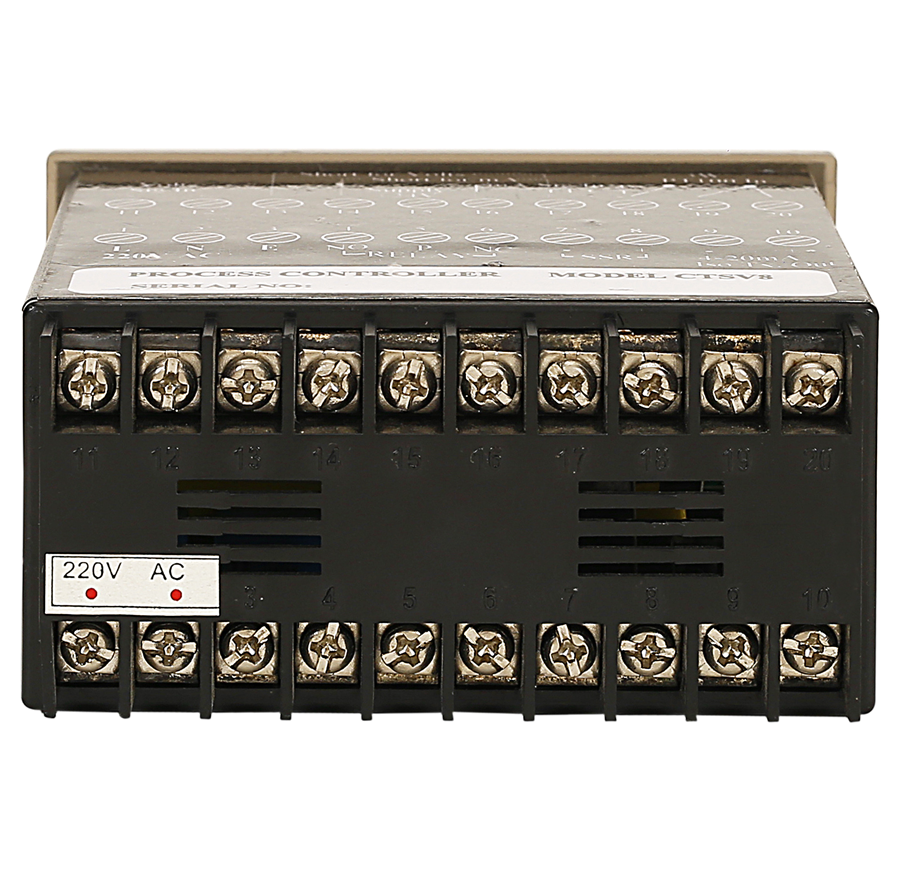

Features
- Large 4 Digit 0.8” 7 Segment LEDs for Process Value. Separate 0.36” Green Display for Set Value
- PT100 (RTD) sensor & 5 types of common thermocouples with Auto cold junction compensation
- Input for 4-20mA / 0-20mA / 1-5V / 0-5V/ 0-10V from Tx for Pressure, Humidity, pH, Temperature etc.
- Display user programmable from -1999 to 9999
- Decimal user settable
- Heater logic relay and Cooler Logic SSR outputs
- 4-20mA isolated re-transmission output
- Hysterisis for set limits user settable
- Offset separately programmed from front
- Excitation voltage for loop Tx. Sourced
Specification
| Display | 4 Digit 0.8” Red 7 Segment LED display for Process Value 4 Digit 0.36” Green 7 Segment LED display for Set Value |
| Inputs | Linear (Universal from Tx) 0-20mA, 4-20mA, 0-5V, 1-5V & 0-10V Non-linear (temperature sensors) T/C – R,T,J,K,N and 3 Wire PT100 |
| Output | Isolated 4-20mA re-transmission output for all inputs |
| Accuracy | ±0.25% of SPAN ± 1 Count |
| Resolution | Settable 0.001 to 9999 for linear inputs 1degC for thermocuples, 0.1degC for PT100 |
| Control | 2 Set of Control Limits Set-1 heater logic & Set-2 cooler logic 5 Amps/220V AC Relay Output for Set 1. SSR 12V DC output for Set 2 Hysterisis settable |
| Exciter Voltage | 24V @ 30mA for loop Tx |
| Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Humidity | Up to 90% (non-condensing) |
| Power Consumption | 10VA |
| Case | 48 x 96 x 85 mm Plastic ABS |
| Front Fascia | 48 x 96 mm |
| Panel Cutout | 43 x 91 mm |
