Category: Ampere hour Meter
SKU: 810AH
Features
- Maintaining a preset constant thickness in Electroplating irrespective of fluctuations in voltage, current etc., since the plating thickness is proportional to the integrated current
- Checking the A-H of a charged 12V battery
- Displaying high Direct Current using a shunt calibrated for 75mV
Specification
| Display | 6 RED 7 Segment LEDs of 0.56” character height. 4 Digit Green display for Current |
| Current | Max 9999 Amps using a shunt of current/75mV. User programmed |
| Amp-Hour | Max 999999 A-H for each preset cycle |
| Amp-Min | Max 999999 A-Min for each preset cycle |
| Max shunt | Max value of 9999 Amp corresponding to 75mV |
| Totaliser | 6 Digits for Amp-Hour or Amp-Min. i.e. 99,99,99 |
| Limit | Up to 999999 AH or Amin. setting |
| Relay Contact | One NO-P-NC of 5 Amp rating |
| Trigger start | By pressing front panel switch or closing a rear external contact |
| Battery | Not required. All programmed values and readings including A-H stored in EEPROM |
| Lock | Electronic lock for calibration |
| Low Voltage | Set at 10.5V internally. For testing 12V Battery AH |
| Supply | 220V AC ± 10% |

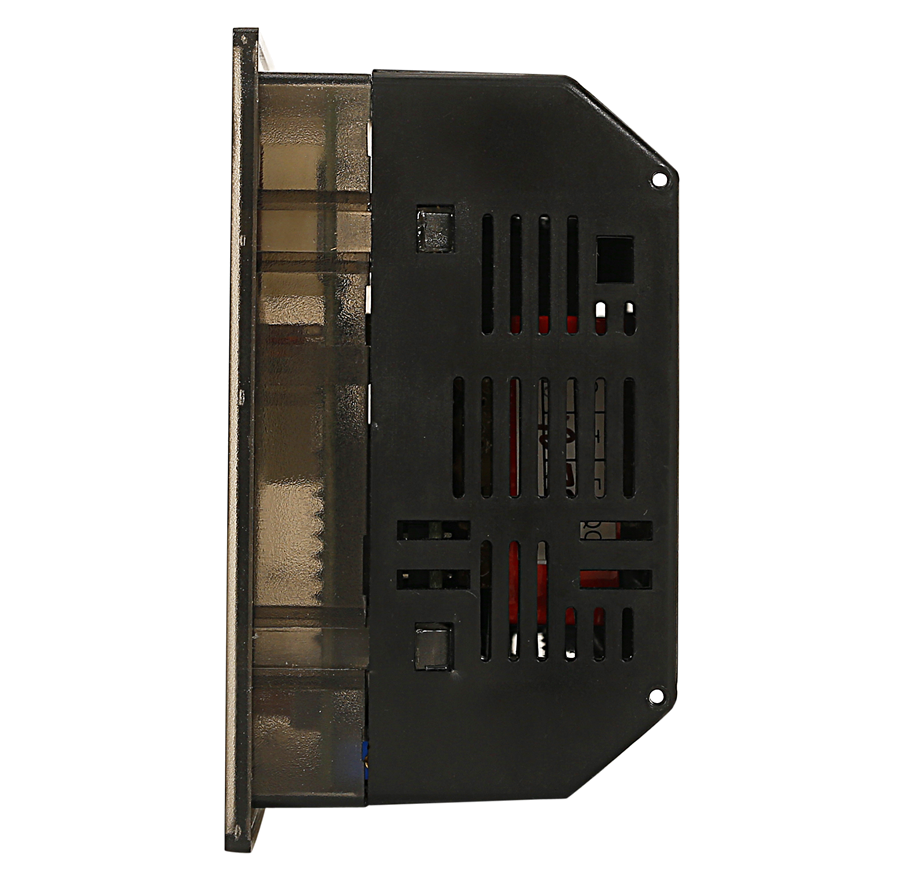

| Size | Front Fascia: 96mm x 96mm. Depth: 50mm. |
| Weight | 800 grams |
| Mounting | Panel mounted |
| Resolution | 0.1AH or 0.1AMin user selectable through front panel |
