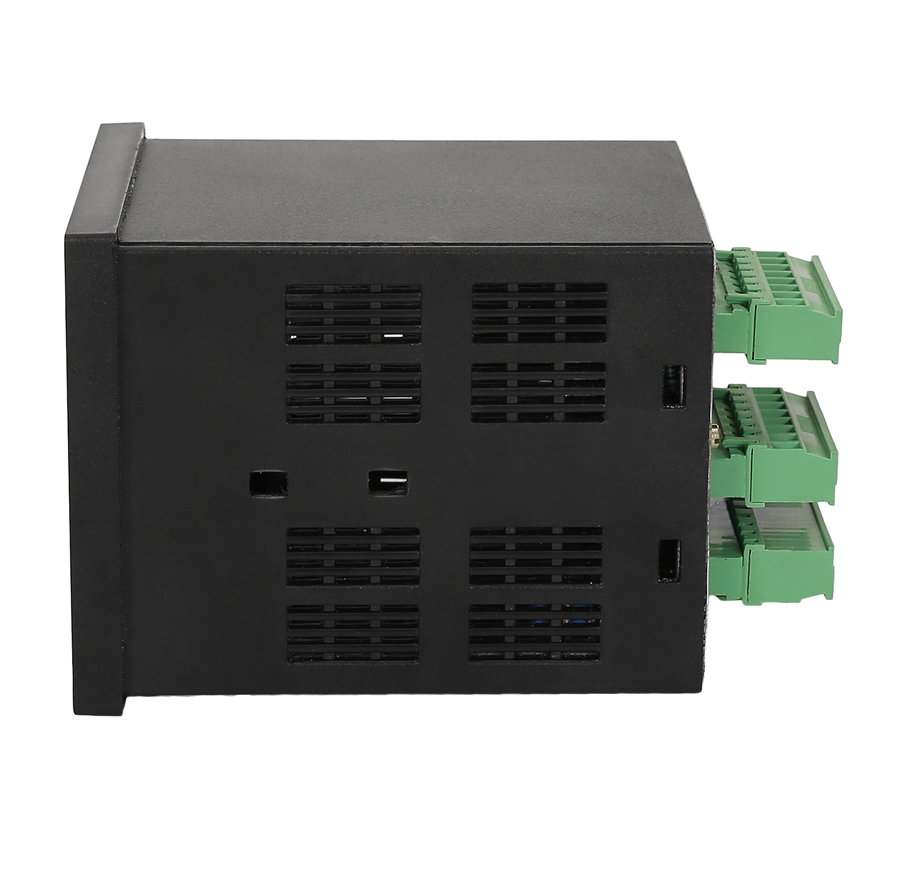

8-Channel-Universal-Data-Logger-with-USB-Pen-Driv-3

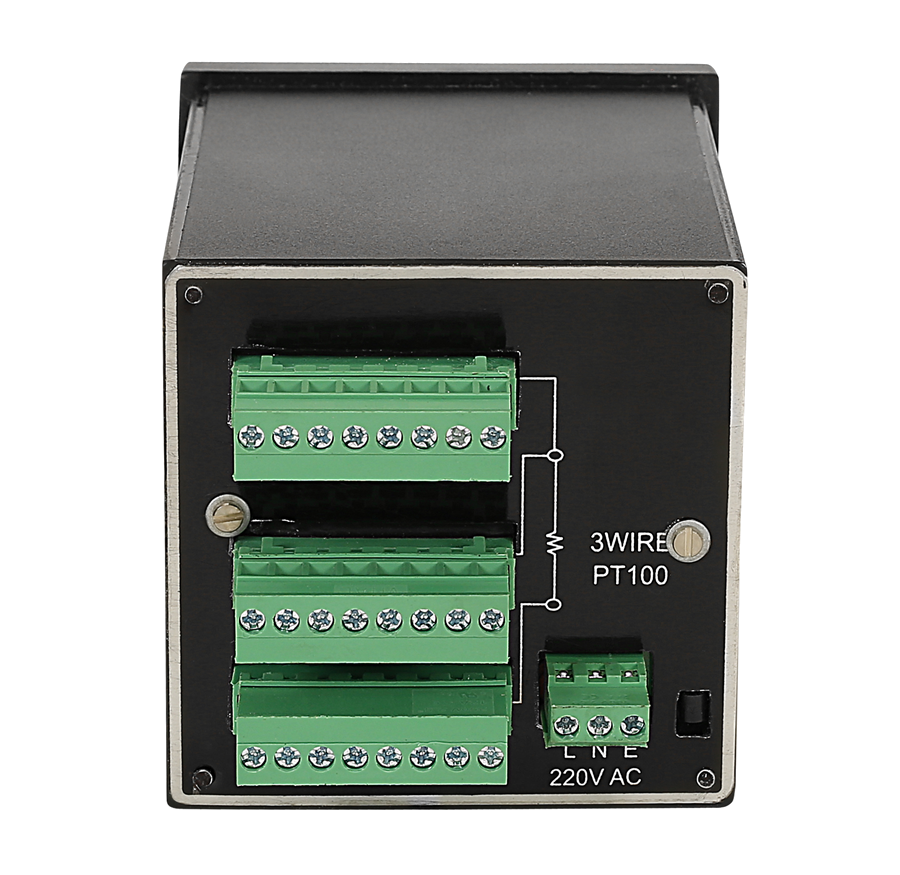

8-Channel-Universal-Data-Logger-with-USB-Pen-Driv-2

8 channel Temperature Scanner for J/K/R/PT100/4-20mA sensor with direct USB Pen Drive output (LED Display)

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Data Loggers Category : Digital Temperature Controller
SKU: CT708U
Download Catalogue

Description

  • Data saved directly on USB Pen drive in an MS Excel compatible file/li>
  • Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
  • 4-20mA input with Low, High and resolution individually settable for each channel.
  • Auto cold junction compensation for thermocouples and 3 wire input for PT100
  • Number of usable channels selectable.
  • Auto/Manual mode of scanning selectable
  • Rate of logging settable by user in Mins:Secs
  • Digital offset user settable for individual channels
  • Internal Real Time Clock with battery backup for saving values along with Date and Time
  • No need of any complicated or additional software for managing data
  • Saving data on Pen drive allows a very large amount of storage space at very low cost.

Additional information

Your custom text or HTML.

Weight 700 lbs
Display

0.56” Red LED display for Channel Number
0.56” Red LED display for Process Value
Sensor

J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable
Range

J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C 4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1
Resolution

1˚C for thermocouples, 0.1˚C for PT100 and user selectable for 4-20mA
Channels

Maximum 8
Scanning Rate

User settable from 1-99seconds
Digital Offset

User settable individually for each channel
Logging Rate

1 second to 99Mins59seconds
Data Logging

Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels
Real Time Clock

Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
Accuracy

±1˚C ± 1 Least Significant Digit for Thermocouples
±0.1˚C ± 1 Least Significant Digit for PT100
Power Supply

230V AC ± 15% at 50/60Hz
Mounting Type

Panel Type
Front Facia

96mm x 96mm

Additional Information

Display:
0.56” Red LED display for Channel Number 0.56” Red LED display for Process Value
Sensor:
J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable
Range:
J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C 4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1
Resolution:
1˚C for thermocouples, 0.1˚C for PT100 and user selectable for 4-20mA
Channels:
Maximum 8
Scanning Rate:
User settable from 1-99seconds
Digital Offset:
User settable individually for each channel
Logging Rate:
1 second to 99Mins59seconds
Data Logging:
Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels
Real Time Clock:
Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
Accuracy:
±1˚C ± 1 Least Significant Digit for Thermocouples ±0.1˚C ± 1 Least Significant Digit for PT100
Power Supply:
230V AC ± 15% at 50/60Hz
Mounting Type:
Panel Type
Front Facia:
96mm x 96mm
