Name: Humidity and Temperature Controller with Honeywell make capacitive sensor and 4 SSR outputs for Heater/Cooler/Humidifier/De-Humidifier
SKU: 7214
Availability: InStock

Humidity and Temperature Controller with Honeywell make capacitive sensor and 4 SSR outputs for Heater/Cooler/Humidifier/De-Humidifier

SKU: 7214

Download Catalogue

Description

Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.
Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power
On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis
Digital Offset control for Temperature and Humidity
Capacitive sensor for 0-100% Humidity and -20˚C to +80˚C
Non-Volatile memory to hold settings and counts

Additional information

Your custom text or HTML.

Display	4 Digit, 7 segment Green LED display (0.56” height) for Humidity 4 Digit, 7 segment Red LED display (0.56” height) for Temperature
Range	0-100.0% for Humidity (in 5˚C to 50˚C temperature range) -20.0˚C to +80.0˚C for Temperature
Set Limits	0-100.0% for Humidifier 0-100.0% for De-Humidifier -40.0˚C to +100.0˚C for Heater -40.0˚C to +100.0˚C for Cooler
Percentage Power	0-200% for Set Limits of Humidifier and Heater.
Hysterisis	0-9.9 for De-Humidifier and Cooler
Digital Offsets	-19.9 to +19.9 for Humidity -19.9 to +19.9 for Temperature
Sensor Supply	5V DC

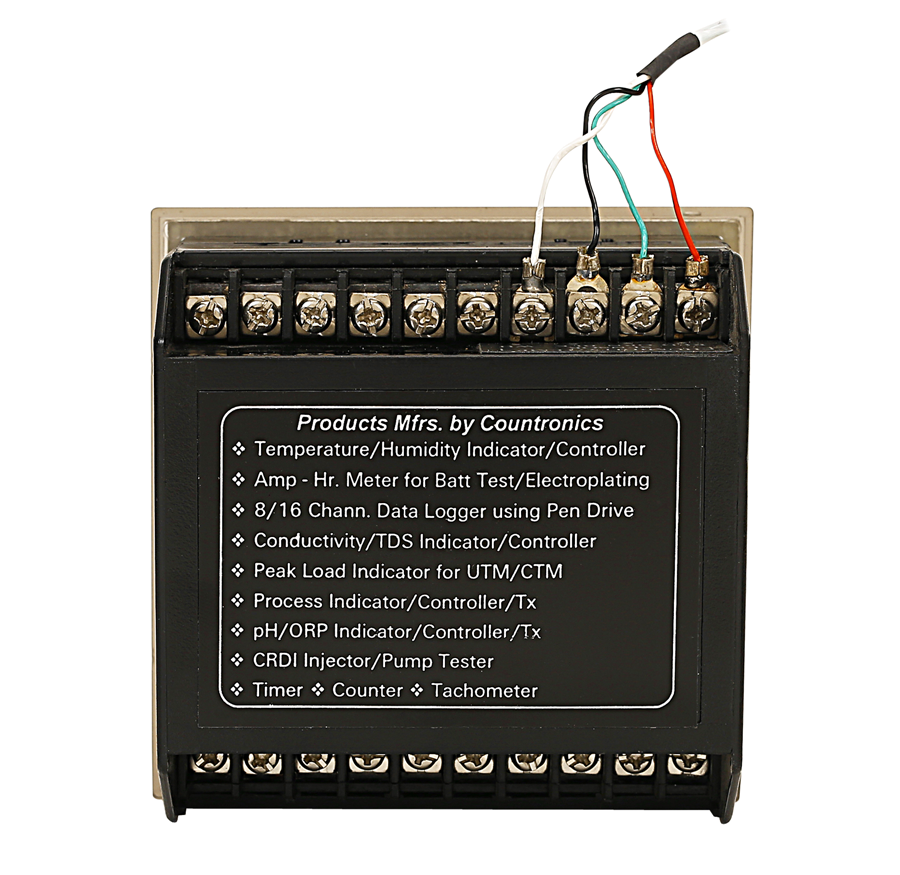

SSR Outputs	+12VDC outputs Heater, Cooler, Humidifier and De-Humidifier
Memory Retention	10 years

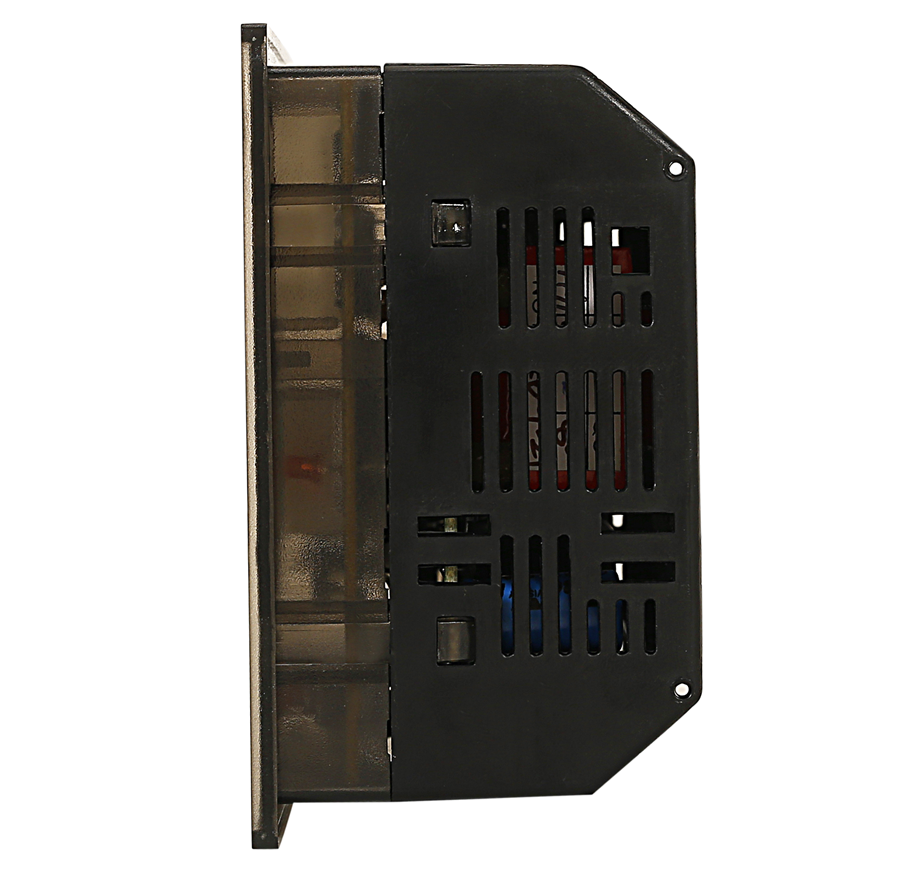

Mounting	Panel Mounting
Size	96mm x 96mm. Depth 50mm
Weight	Approx. 375 grams
Operating Temp.	0-50˚C
Humidity	95% RH

Additional Information

Display:

4 Digit, 7 segment Green LED display (0.56” height) for Humidity 4 Digit, 7 segment Red LED display (0.56” height) for Temperature

Range:

0-100.0% for Humidity (in 5˚C to 50˚C temperature range) -20.0˚C to +80.0˚C for Temperature

Set Limits:

0-100.0% for Humidifier 0-100.0% for De-Humidifier -40.0˚C to +100.0˚C for Heater -40.0˚C to +100.0˚C for Cooler

Percentage Power:

0-200% for Set Limits of Humidifier and Heater.

Hysterisis:

0-9.9 for De-Humidifier and Cooler

Digital Offsets:

-19.9 to +19.9 for Humidity -19.9 to +19.9 for Temperature

Sensor Supply:

5V DC

SSR Outputs:

+12VDC outputs Heater, Cooler, Humidifier and De-Humidifier

Memory Retention:

10 years

Mounting:

Panel Mounting

Size:

96mm x 96mm. Depth 50mm

Weight:

Approx. 375 grams

Operating Temp.:

0-50˚C

Humidity:

95% RH
