Peak Load Indicator for CTMs with RS-232 output and data logging software (one way operation) in LCD display (without sensor)

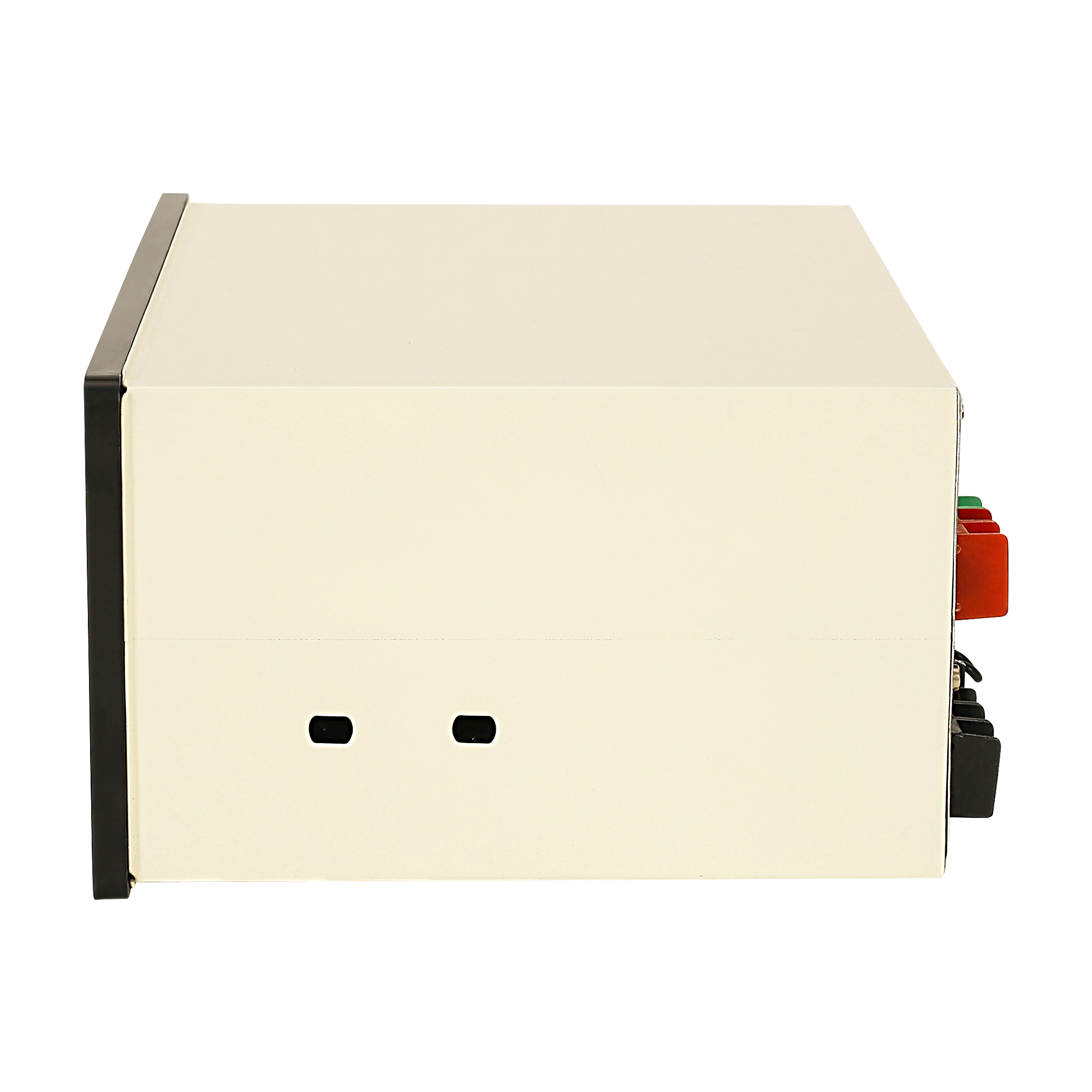

Peak Load Indicator for CTMs with RS-232 output and data logging software in LCD display - Image 2

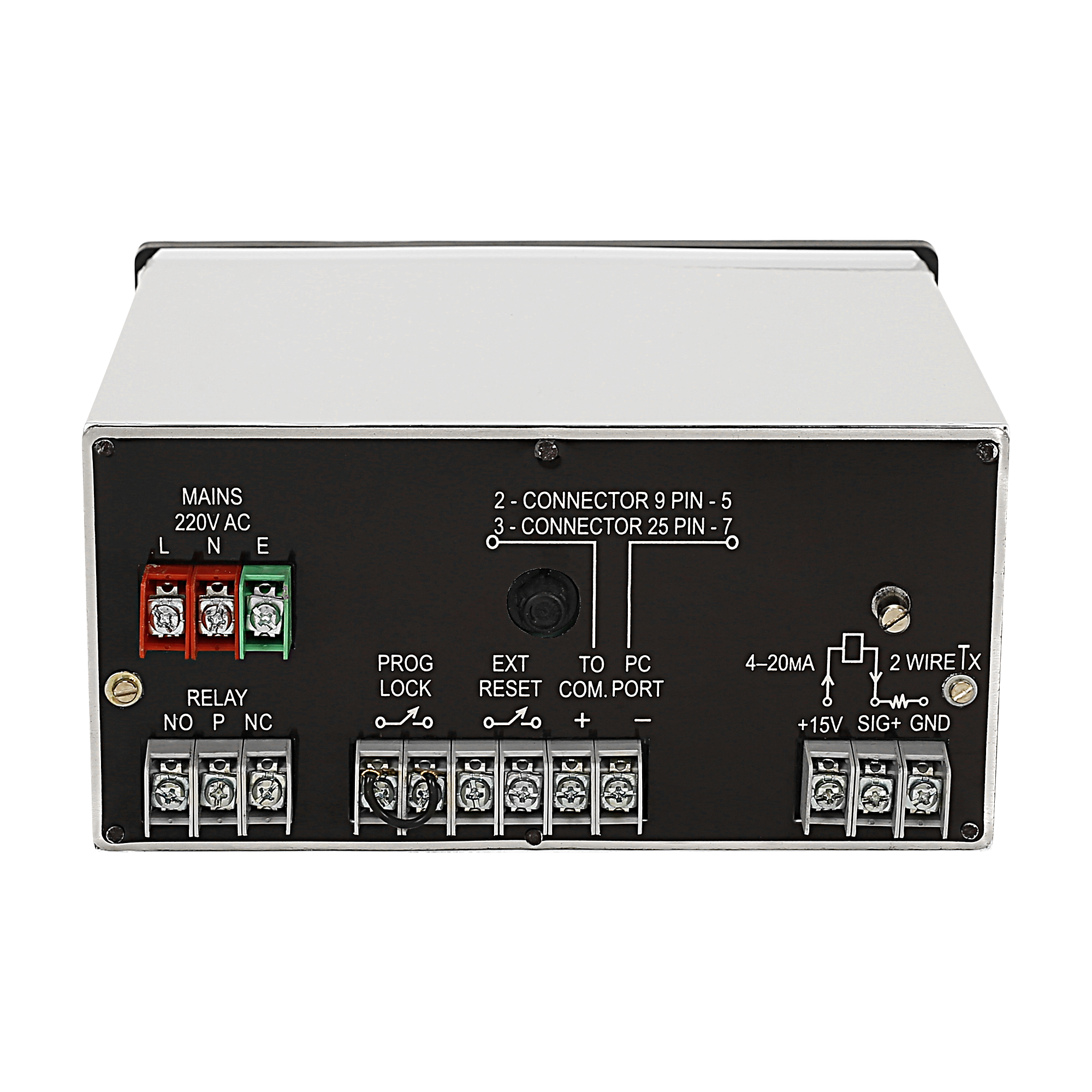

Peak Load Indicator for CTMs with RS-232 output and data logging software in LCD display - Image 3

Peak Load Indicator for CTMs with RS-232 output and data logging software in LCD display

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Peak Load
SKU: CT902
Download Catalogue

Description

  • Sample Area digitally settable
  • Stress at Peak load calculated & displayed
  • Peak/Normal mode selectable
  • Buzzer alarm for peak detection in Peak Mode
  • Relay output for load limit detection
  • Digital tare provided
  • Non-volatile memory for saving configuration
  • RS-232 serial output for logging on PC
  • Configuration lock at rear to prevent tampering
  • Aesthetically designed front panel with membrane switches

Additional information

Your custom text or HTML.

Display

2 Line alphanumeric display with back light illumination
Range

o Load : 0.1KN to 6000KN
o Set Load (Limit) : 0.1KN to 6000KN
o Set Pace Rate : 0.1KN/sec to 99.9KN/sec
o Sample Area : 0.1cm2 to 999.9cm2
Accuracy

±0.1% of Full Scale ± 1 digit
Relay Logic

ON when Actual Load ≥ Set Load Limit
Normal/Peak Mode

Selectable from front panel with LED indication of current mode
Peak Detection

Buzzer alarm re-settable from front Reset switch/ rear external contact
Tare Facility (Zero)

Digital Tare using front panel Tare switch
Memory

Non-volatile EEPROM to save settings
Configuration Lock

Jumper on rear terminals to prevent alteration of configuration from front
Serial Output

RS-232 output to interface to PC
Supply

220V AC ± 15% @ 50/60Hz
Dimensions

Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm

Additional Information

Display:
2 Line alphanumeric display with back light illumination
Range:
o Load : 0.1KN to 6000KN o Set Load (Limit) : 0.1KN to 6000KN o Set Pace Rate : 0.1KN/sec to 99.9KN/sec o Sample Area : 0.1cm2 to 999.9cm2
Accuracy:
±0.1% of Full Scale ± 1 digit
Relay Logic:
ON when Actual Load ≥ Set Load Limit
Normal/Peak Mode:
Selectable from front panel with LED indication of current mode
Peak Detection:
Buzzer alarm re-settable from front Reset switch/ rear external contact
Tare Facility (Zero):
Digital Tare using front panel Tare switch
Memory:
Non-volatile EEPROM to save settings
Configuration Lock:
Jumper on rear terminals to prevent alteration of configuration from front
Serial Output:
RS-232 output to interface to PC
Supply:
220V AC ± 15% @ 50/60Hz
Dimensions:
Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm
