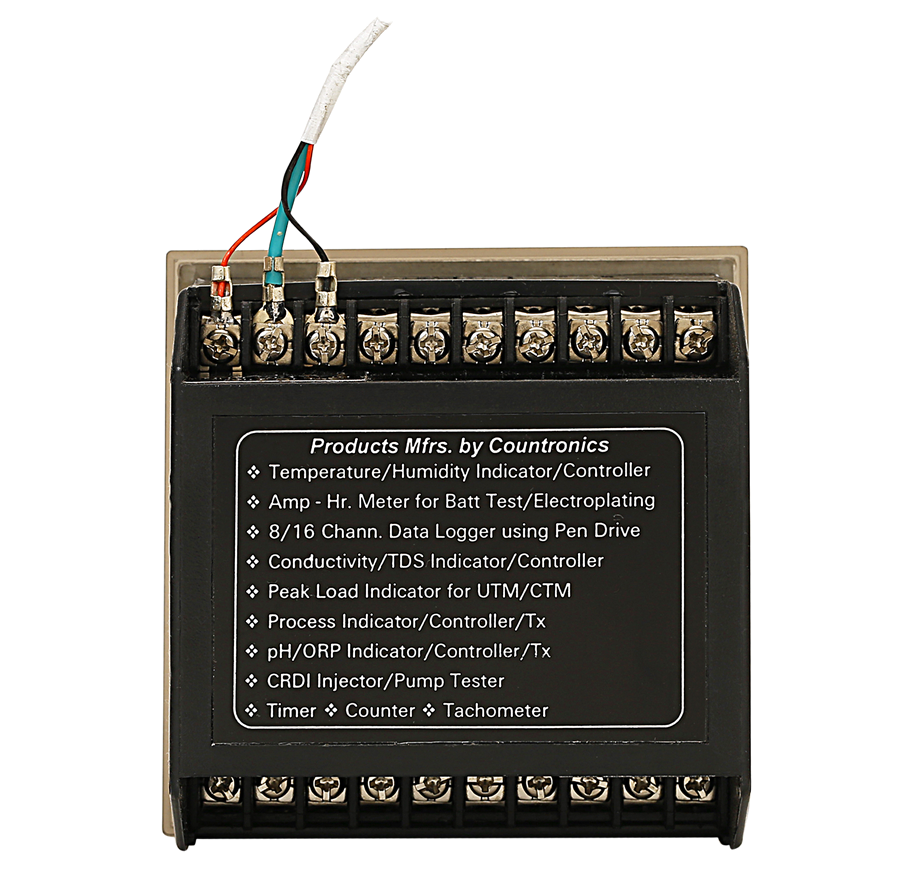

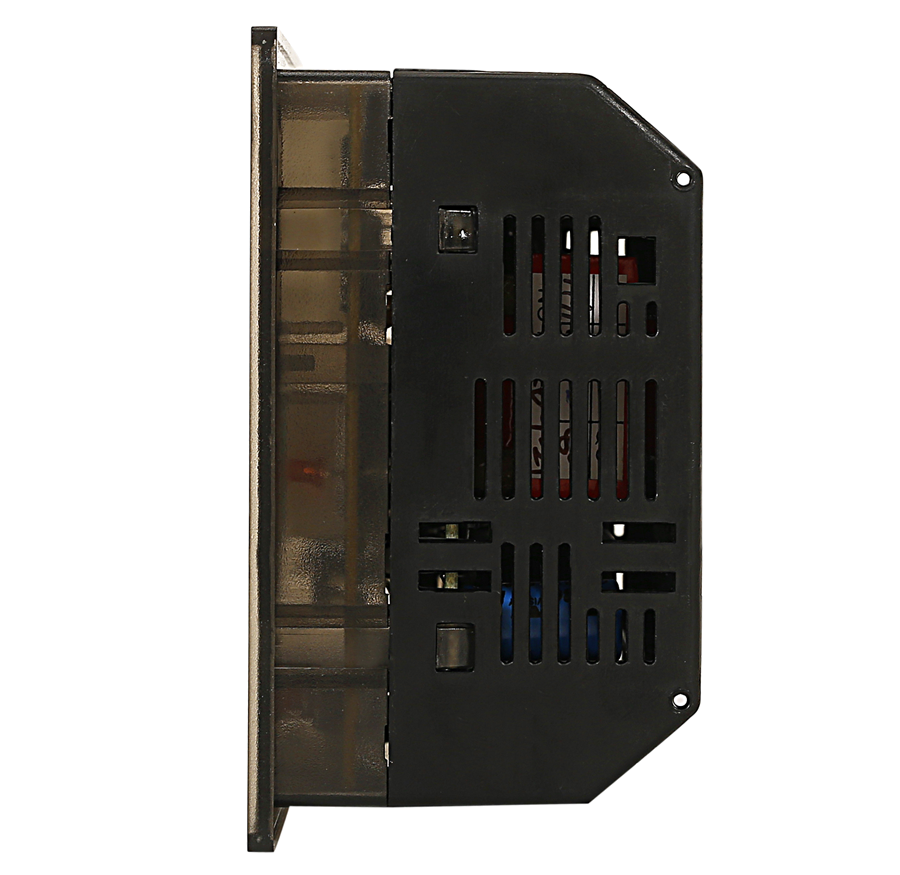

Humidity and Temperature Controller with sensor and 2 relay outputs with Dry/Wet Sensor for Temperature and Humidity
Humidity and Temperature Controller with sensor and 2 relay outputs with Dry/Wet Sensor for Temperature and Humidity - Image 2
Humidity and Temperature Controller with sensor and 2 relay outputs with Dry/Wet Sensor for Temperature and Humidity - Image 3

Humidity and Temperature Controller with sensor and 2 relay outputs with Dry/Wet Sensor for Temperature and Humidity

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Temperature & Humidity
SKU: 7217
Download Catalogue

Description

  • Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
  • Separate Limits and Relays for Temperature and Humidity with selection between Heater/Cooler and Humidifier/De-Humidifier
  • On/Off type outputs with user settable Hysterisis
  • Digital Offset control for Temperature and Humidity
  • Capacitive sensor offering ease of use
  • Non-Volatile memory to hold settings and counts

Additional information

Your custom text or HTML.

Display

4 Digit, 7 segment Green LED display (0.56” height) for Humidity
4 Digit, 7 segment Red LED display (0.56” height) for Temperature
Range

0-100.0% for Humidity (in 5˚C to 50˚C temperature range)
0˚C to +80.0˚C for Temperature
Set Limits

0-100.0% for Humidity Set Limit
0.0˚C to +100.0˚C for Temperature Set Limit
Hysterisis

0-9.9 for Humidity and Temperature
Digital Offsets

-19.9 to +19.9 for Humidity
-19.9 to +19.9 for Temperature
Relay Outputs

Potential Free contacts @220V/5Amps, one each for Temperature and Humidity
Memory Retention

10 years
Mounting

Panel Mounting
Size

96mm x 96mm. Depth 50mm
Weight

Approx. 375 grams
Operating Temp.

0-50˚C
Humidity

95% RH

Additional Information

Display:
4 Digit, 7 segment Green LED display (0.56” height) for Humidity 4 Digit, 7 segment Red LED display (0.56” height) for Temperature
Range:
0-100.0% for Humidity (in 5˚C to 50˚C temperature range) 0˚C to +80.0˚C for Temperature
Set Limits:
0-100.0% for Humidity Set Limit 0.0˚C to +100.0˚C for Temperature Set Limit
Hysterisis:
0-9.9 for Humidity and Temperature
Digital Offsets:
-19.9 to +19.9 for Humidity -19.9 to +19.9 for Temperature
Relay Outputs:
Potential Free contacts @220V/5Amps, one each for Temperature and Humidity
Memory Retention:
10 years
Mounting:
Panel Mounting
Size:
96mm x 96mm. Depth 50mm
Weight:
Approx. 375 grams
Operating Temp.:
0-50˚C
Humidity:
95% RH
