Peak Load Logger Indicator
Peak Load Logger Indicator - Image 2

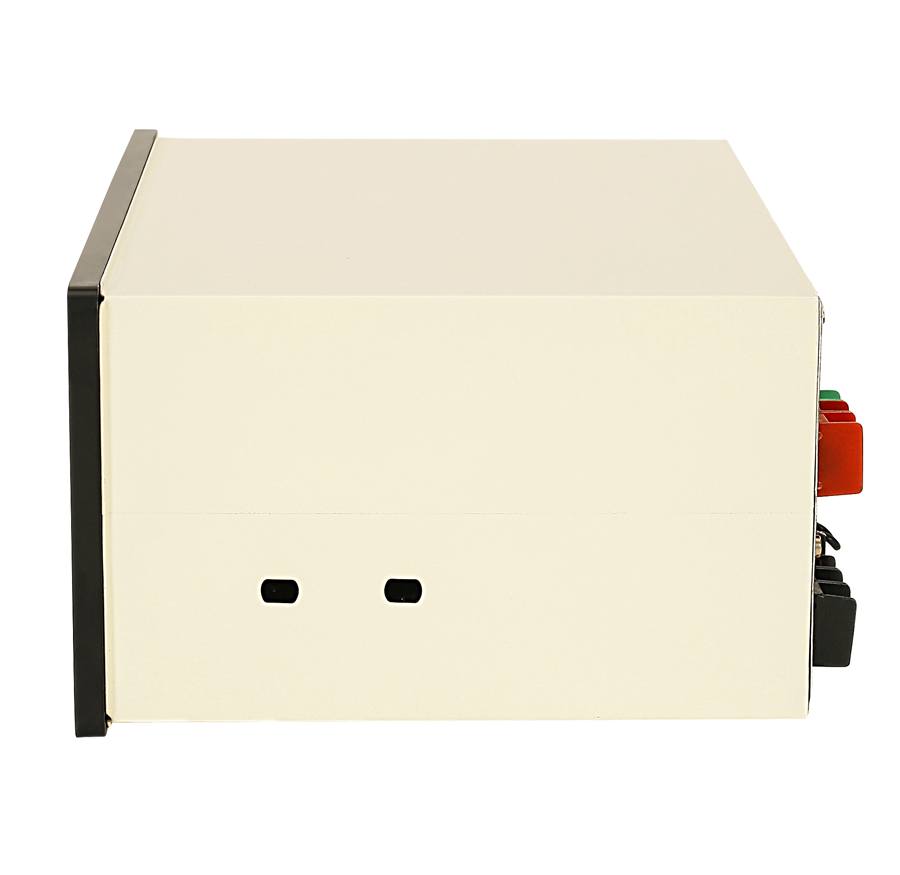

Peak Load Logger Indicator - Image 3

Peak Load Logger Indicator

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Scanners Category : Temperature
SKU: 6308-1

Description

  • Large alphanumeric LCD display with backlight
  • Pace Rate display in KN/sec
  • Sample Area digitally settable
  • Stress at Peak load calculated & displayed
  • Auto incrementing Sample Number
  • Peak/Normal mode selectable
  • Buzzer alarm for peak detection in Peak Mode,
  • Relay output for load limit detection
  • Real Time Clock setting with battery backup
  • Digital tare provided
  • Non-volatile memory for saving configuration
  • Formatted RS-232 serial output for logging on PC
  • Configuration lock at rear to prevent tampering
  • Aesthetically designed front panel with membrane switches

external contactTare Facility (Zero)Digital Tare using front panel Tare switch up to a maximum of

50KN (for removing initial offset error)MemoryNon-volatile EEPROM to save settingsConfiguration LockOn rear terminals to prevent unauthorized/accidental alteration of Range using front switchesSupply220V AC ± 15% @ 50/60HzDimensionsFront Fascia: 96mm x 192mm
Cut Out : 92mm x 188mm

Additional information

Your custom text or HTML.

Display

2 Line alphanumeric display with back light illumination
4 digit for Load in KN , 3 digit for Pace Rate in KN/sec
Peak/Normal indication
Range

a. Load : 0.1KN to 6000KN
b. Set Load (Limit) : 0.1KN to 6000KN
c. Sample Area : 0.1cm2 to 999.9cm2
Accuracy

±0.1% of Full Scale ± 1 digit
Input

From 2 wire loop transmitter giving 4-20mA output
4-20mA input => 0 – Range
Relay Logic

When Actual Load ≥ Set Load Limit relay switches On.
Normal/Peak Mode

Selectable from front panel with indication of mode
Serial Output

Formatted RS-232 output to interface for logging using Hyperterminal
Real Time Clock

Date and Time setting with internal battery backup
Sample No

Auto increment with resetting option
Peak Detection

Peak hold is resettable from front Reset Switch or by parallel rear

Additional Information

Display:
2 Line alphanumeric display with back light illumination 4 digit for Load in KN , 3 digit for Pace Rate in KN/sec Peak/Normal indication
Range:
a. Load : 0.1KN to 6000KN b. Set Load (Limit) : 0.1KN to 6000KN c. Sample Area : 0.1cm2 to 999.9cm2
Accuracy:
±0.1% of Full Scale ± 1 digit
Input:
From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 – Range
Relay Logic:
When Actual Load ≥ Set Load Limit relay switches On.
Normal/Peak Mode:
Selectable from front panel with indication of mode
Serial Output:
Formatted RS-232 output to interface for logging using Hyperterminal
Real Time Clock:
Date and Time setting with internal battery backup
Sample No:
Auto increment with resetting option
Peak Detection:
Peak hold is resettable from front Reset Switch or by parallel rear
