6 Digit Programmable Counter, with Single set limit, (Size: 48x96mm)

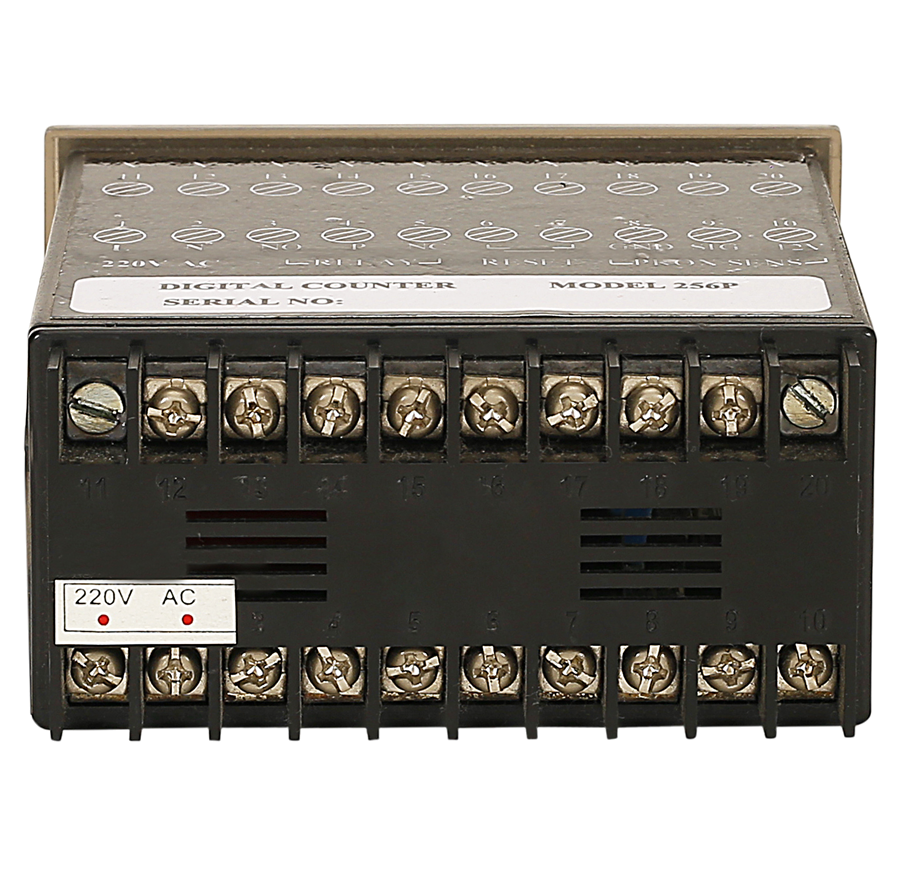

6 Digit Programmable Counter, with Single set limit, (Size: 48x96mm) - Image 2

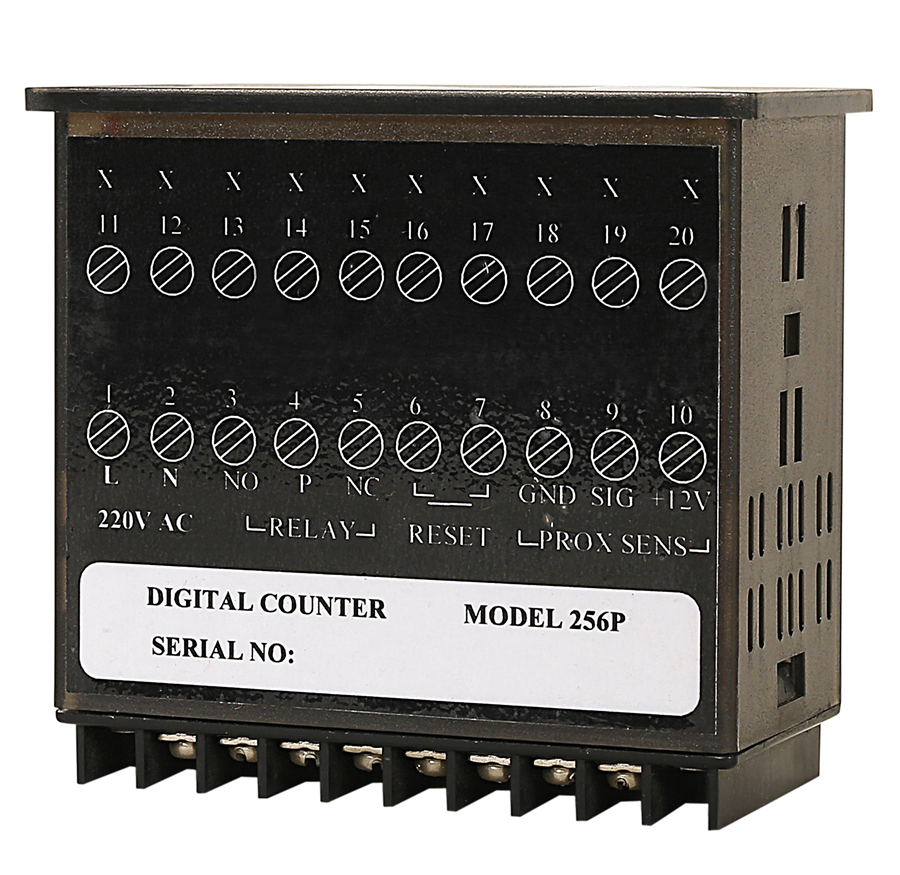

6 Digit Programmable Counter, with Single set limit, (Size: 48x96mm) - Image 3

6 Digit Programmable Counter, with Single set limit, (Size: 48x96mm)

Please install and activate YITH WooCommerce Wishlist to add product wishlist
Category : Counter
SKU: 256P
Download Catalogue

Description

  • 6 Digit Preset Counter with 0.56” bright red display
  • Single set with relay output
  • Programmable Multiplying factor
  • Settable Time delay with auto-reset facilities
  • Resolution settable from front panel
  • Normal/Auto-Reset with Time setting
  • Non-Volatile memory to hold settings and counts

Additional information

Your custom text or HTML.

Display

6 Digit, 7 segment LED display (0.56” height)
Range

Selectable least count of 0.001, 0.01, 0.1, 1. Maximum Count of 999999
Set Limits

Programmable from 0.001 to 999999
Count Inputs

a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch
b. Potential free contact from limit switch, relay or micro switch
Input Frequency

a. 0 to 30 Hz b. 0 to 1 KHz
Sensor Supply

10V DC, short circuit protected
Multiplying Factor

Programmable from 0.001 to 999.999
Reset Input

a. Front Panel b. Remote reset
Relay Outputs

1 C/O (SPDT) rated at 5Amp @ 230 V AC
Memory Retention

10 years
Mounting

Panel Mounting
Size

48mm x 96mm
Weight

900 grams
Operating Temp.

0-50˚C
Humidity

95% RH

Additional Information

Display:
6 Digit, 7 segment LED display (0.56” height)
Range:
Selectable least count of 0.001, 0.01, 0.1, 1. Maximum Count of 999999
Set Limits:
Programmable from 0.001 to 999999
Count Inputs:
a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch b. Potential free contact from limit switch, relay or micro switch
Input Frequency:
a. 0 to 30 Hz b. 0 to 1 KHz
Sensor Supply:
10V DC, short circuit protected
Multiplying Factor:
Programmable from 0.001 to 999.999
Reset Input:
a. Front Panel b. Remote reset
Relay Outputs:
1 C/O (SPDT) rated at 5Amp @ 230 V AC
Memory Retention:
10 years
Mounting:
Panel Mounting
Size:
48mm x 96mm
Weight:
900 grams
Operating Temp.:
0-50˚C
Humidity:
95% RH
