Features

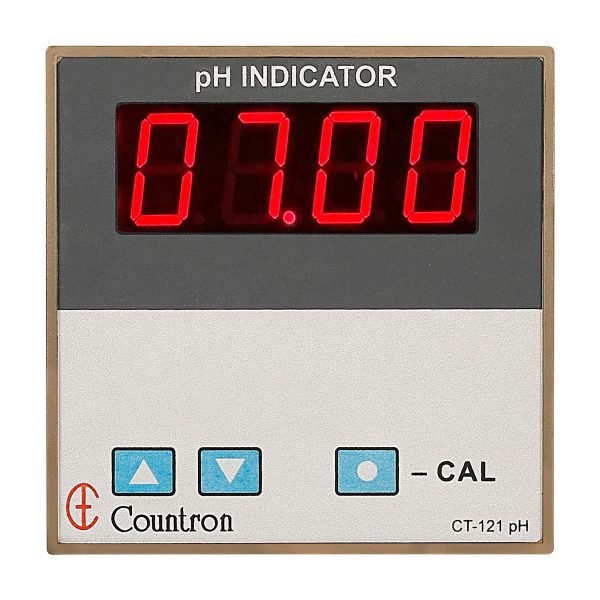

- Accurate pH display with calibration facility on front panel.
- Large 0.8” Red 7 Segment Display
- Auto Temp Compensation using external PT100
- Digital calibration for pH-7 and pH-4

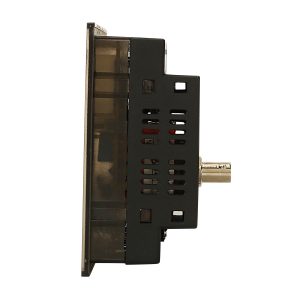

- Slim enclosure of only 40mm depth
Specification
| Display | 3½ Digit Red, 0.8” character height LED display |
| Range | 0.00 to 14.00 pH |
| Auto Temp | 0-100˚C using PT100 ext. sensor compensation |
| Calibration | Standard pH-7 : 7.00 ± 1 Slope pH-4 : 4.00 ± 1 |
| Accuracy | 0.5% ± 1 Digit |
| Input Impedance | >1012 Ω |
| Supply | 220V AC ±10% @ 50/60Hz |
| Size | Front facia – 96mm x 96mm x 40mm Cut Out – 92mm x 92mm |
| Enclosure | Plastic ABS |
| Weight | 700gms |
For More Information View Catalogue.
