Category: Process Controller and Indicator
SKU: 2600M
Features
- Microprocessor based precision indicator
- Input for 4-20mA programmable from Tx for Pressure, Humidity, pH, Temperature etc.
- Span, Zero and resolution user programmable
- Display user programmable from -1999 to 9999
- 4 Digit 0.56” Bright 7 Segment LEDs
- Offset separately programmed from front

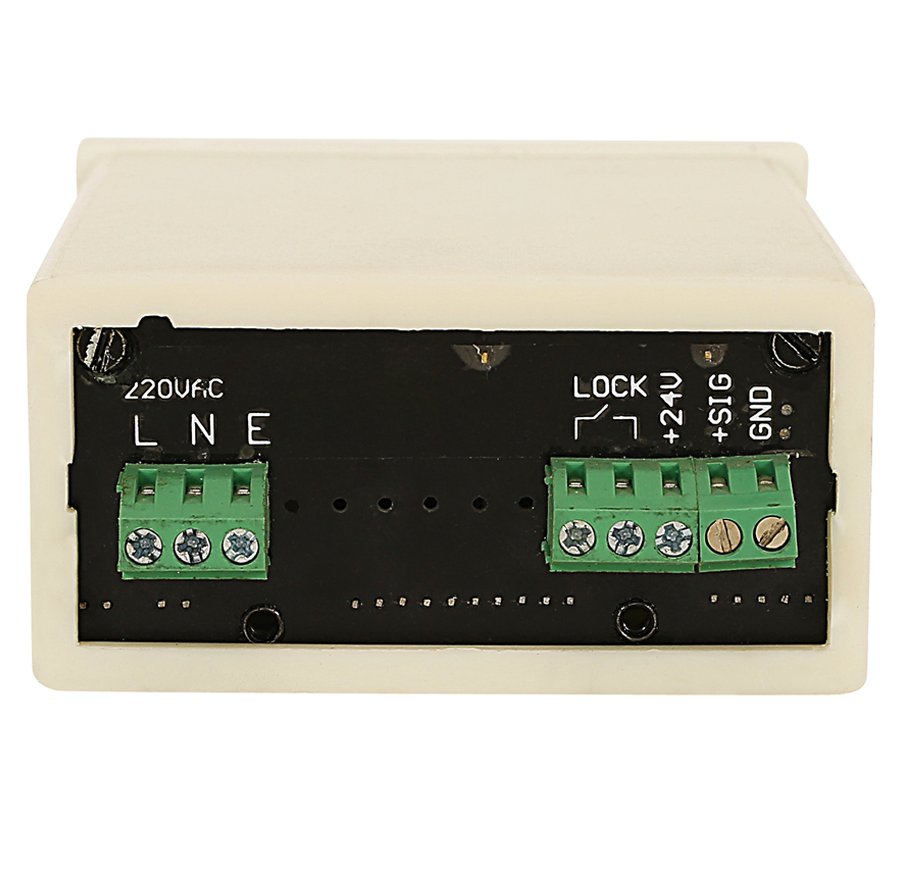

- Configuration lockable by rear jumper
- Excitation voltage for loop Transmitter
- Touch type membrane keys
Specification
| Display | 4 Digit 0.56” Red 7 Segment LED display |
| Inputs | 4-20mA |
| Accuracy | ±0.25% of SPAN ± 1 Count |
| Resolution | Settable 0.000 to 0000 for linear inputs |
| Configuration Lock | Jumper at rear |
| Exciter Voltage | 24V @ 30mA for loop Tx |
| Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Humidity | Up to 90% (non-condensing) |
| Power Consumption | 10VA |

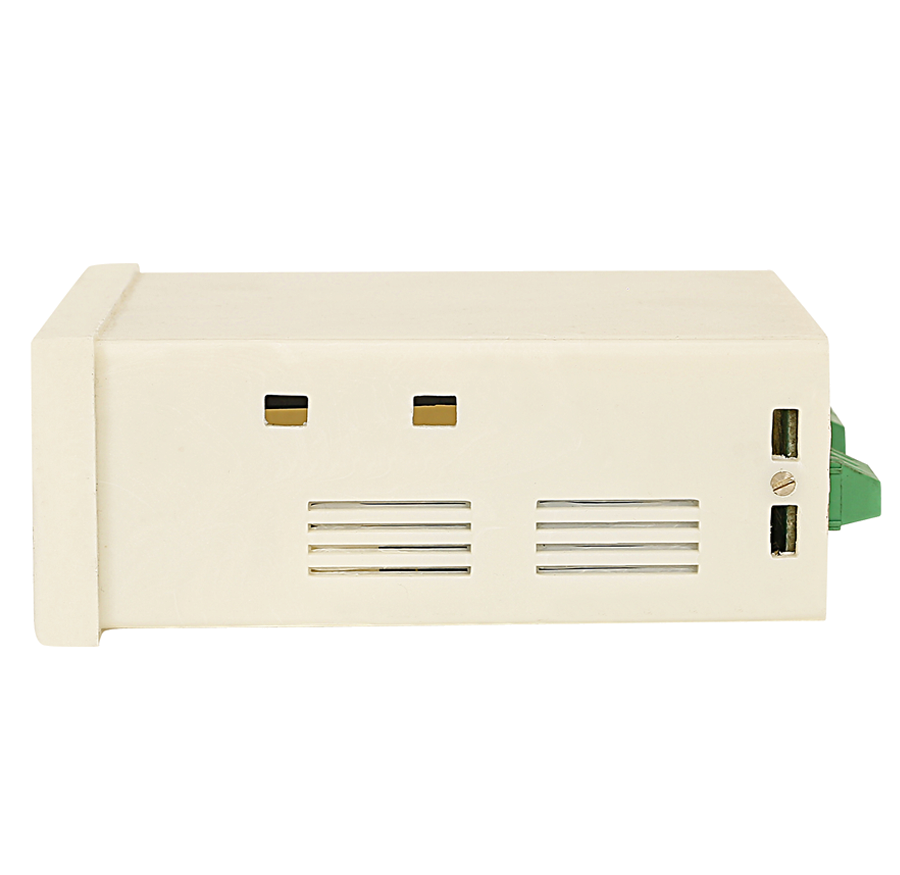

| Case | 96 x 96 x 135 mm Plastic ABS |
| Front Fascia | 48 x 96 mm |
| Panel Output | 48 x 96 mm |
