Category: Process Controller and Indicator
SKU: 2602M
Features
- Microprocessor based precision controller
- Input for 4-20mA from Tx for Pressure, Humidity, pH, Temperature etc
- Display user programmable from 0 to 9999
- 4 Digit 0.56” Bright 7 Segment LEDs
- Decimal user settable
- Separate heater & cooler logic relays
- Hysterisis of relay control settable
- Offset separately programmed from front

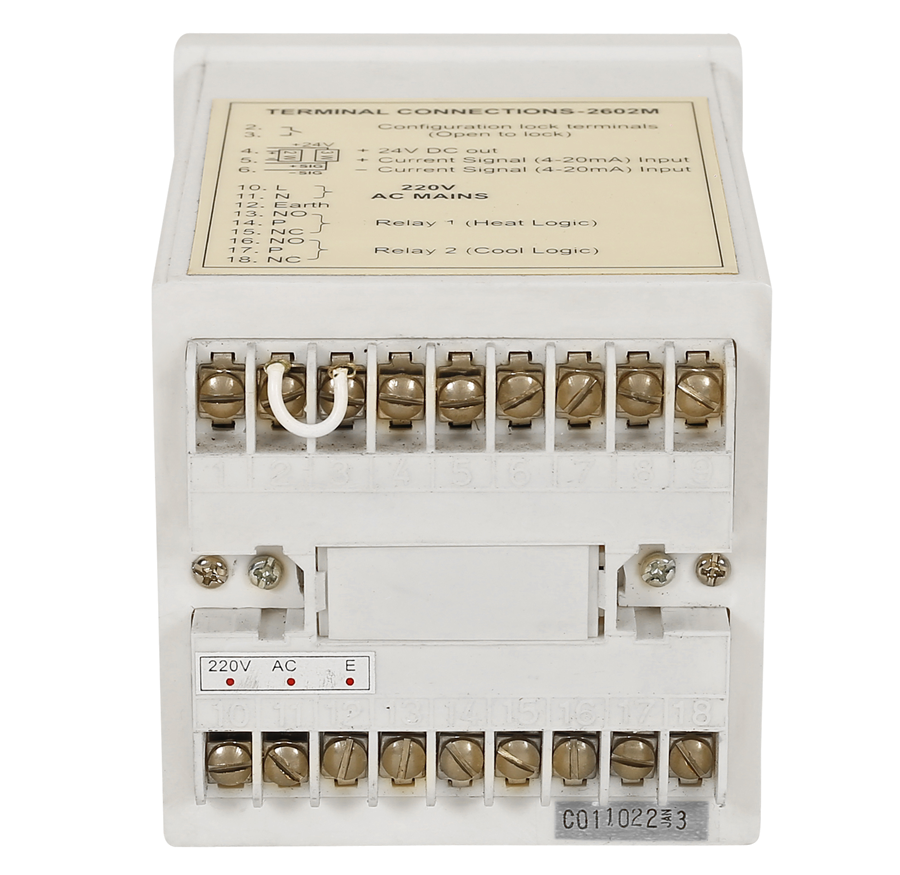

- Configuration lockable by rear jumper
- Excitation voltage for loop Tx. Sourced
- Touch type membrane control keys
Specification
| Display | 4 Digit 0.56” Red 7 Segment LED display |
| Inputs | 4-20mA |
| Accuracy | ±0.25% of SPAN ± 1 Count |
| Resolution | Settable 0.001 to 9999 for linear inputs |
| Control | 2 Set of Control Limits Set-1 heater logic & Set-2 cooler logic 5 Amps/220V AC Relay Contact output Hysterisis settable |
| Configuration Lock | Jumper at rear |
| Exciter Voltage | 24V @ 30mA for loop Tx |
| Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Power Consumption | 10VA |
| Case | 96 x 96 x 135 mm Plastic ABS |
